KLP-PF-01S
KLP
130
220V /380V
filling for glucose powder, flour, starch, small crystals, small particles
plastic bag,stand up pouch bag ,can,tin ,bottle
| Quantity: | |
|---|---|

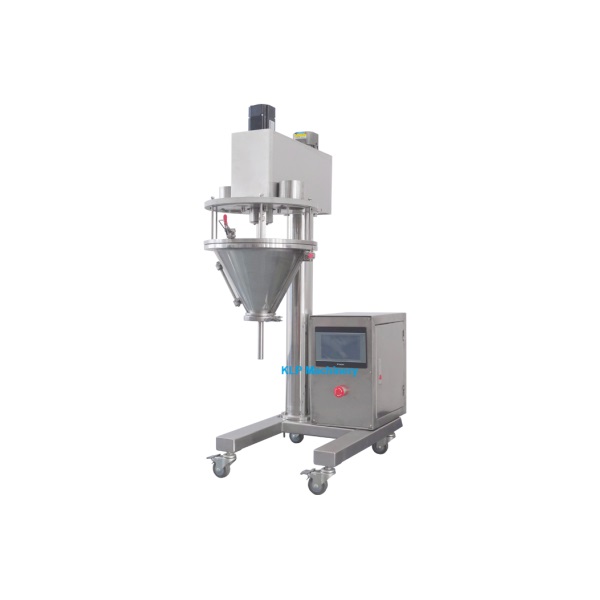

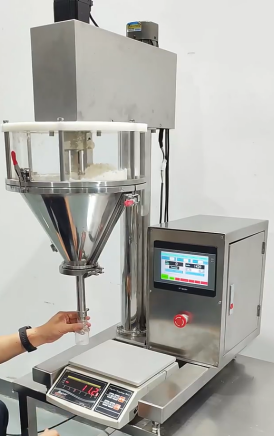

1-100g small table top powder filling machine auger powder filler
Parameter
| Filling range | 1-100g |
| Filling speed | 1200-2500 bags/h |
| Accurancy | 0.05-5g |
| Hopper capacity | 10 liters |
| Power supply | AC 380v or 220v |
| Power | 1Kw |
| Weight | 130kg |
| Machine size | 600*670*1080mm |
Intruduction
This machine made of stainless steel, fully meet the requirements of food and medicine. Gear reducer motor for stirring motor and servo motor for filling motor Against different kinds of packing material, can adopt different mixing mechanism or install the dust removal device, to avoid some special materials leakage or Dust phenomenon.
Characteristic
1. Accurate filling: adopts industrial-grade PLC control system with high accuracy.
2. Easy to clean: The silo can be fully opened , making it easy to clean.
3. Easy to install: fast clamp connection, easy to install.
4. Transparent silo: The operating status of the material is clear at a glance.
5. Stable structure: high-precision processing, perfect mechanical structure, and highly concentric components (motor, long shaft, silo, screw, material cup, etc.), the machine has high operation efficiency and less wear, which greatly reduces the failure rate of screws with different centers.
6. No leakage: It has a synchronous stirring function, which can solve the problem of leakage of most dry, loose and fine materials
7. Easy maintenance and maintenance: the silo can be fully opened, and the internal components of the silo are clear at a glance:
8. The mixing motor adopts a maintenance-free and noise-free Taiwan-made gear reducer motor.
9. The discharge motor adopts a three-phase digital stepper motor with high speed and low noise, which is convenient to adjust the speed.
10. Simple operation: equipped with a touch screen, which can directly set parameters.
Application
This machine is suitable for any kinds of powder, such as milk powder,flour powder,coffee powder,seasoner,additive,pesticide and chemical appliance.
