KLP-PF-01C
KLP
180
220V /380V
filling for milk powder,flour powder,coffee powder,seasoning,additive,pesticide and chemical powder
plastic bag,stand up pouch bag ,can,tin ,bottle
| Quantity: | |
|---|---|

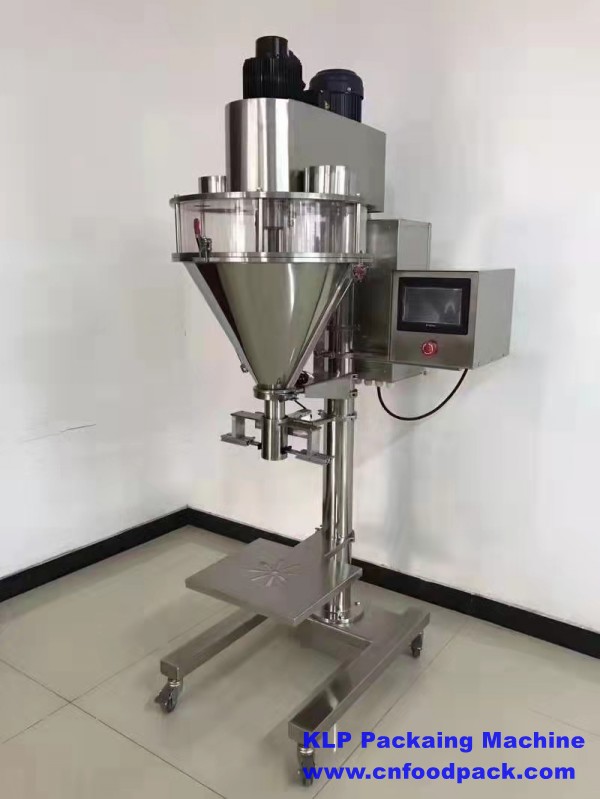

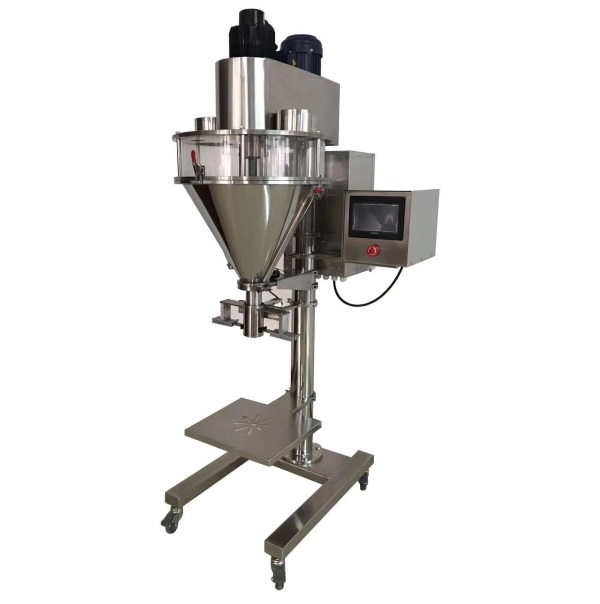

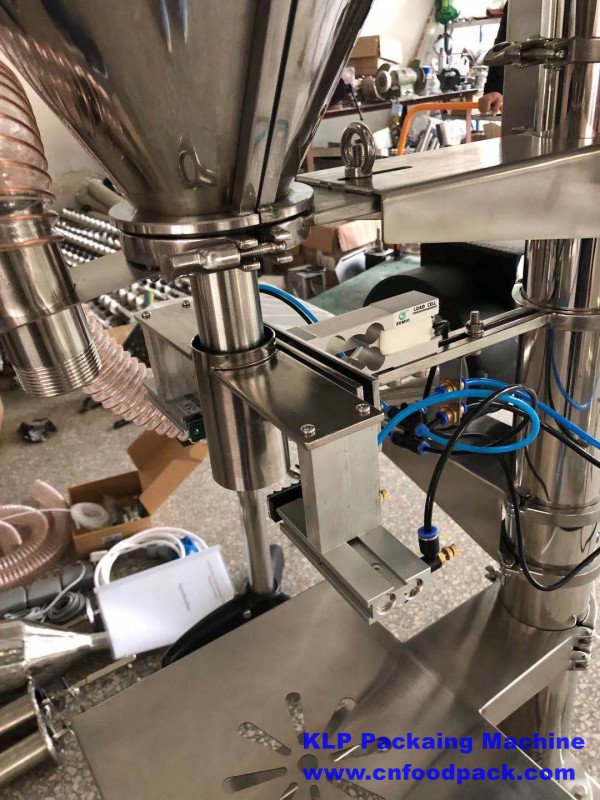

10g-10kg High Accuracy Net Weight Powder Filler Auger Powder Filing Machine with Load Cell And Bag Clamp for Premade Bag
Parameter
Filling range | 10g-10kg |
Filling speed | 300-800 bags/h |
Filling accurancy | ±0.3% |
Power supply | AC 380V or 220V |
Power | 1.5Kw |
Machine weight | 180kg |
Machine size | 710*810*1900mm |
Intruduction
This machine adopts PLC, Chinese or English touch screen.It’s made of stainless steel, fully meet the requirements of food and medicine. Gear reducer motor for stirring motor and servo motor for filling motor,. Against different kinds of packing material, can adopt different mixing mechanism or install the dust removal device, to avoid some special materials leakage or Dust phenomenon.
Characteristic
The machine have two kinds of methods to meter(weighing metering and quantitative metering), you can choose the metering mode according to the material, packaging weight, packing container, and packing accuracy that you need.
Below conditions can choose quantitative metering:
Good fluidity, the uniform proportion materials, such as glucose powder, flour, starch, small crystals, small particles. Small packing specification..Packaging accuracy requirements are not very strict.
Below conditions can choose weighing metering:
Poor fluidity, specific gravity changes, the large water content materials, such as soft sugar, oil tea, water-soluble fertilizer, mancozeb and so on. Large packing specification. Packaging accuracy requirements are relatively high.
1. Transparent hopper, material operation is at a glance;
2. Hopper can open, cleaning is more convenient and fast. It’s easy to adjust the position of the mixer, so that the packaging accuracy to achieve the best, easy to maintain agitator, metering screw, long axis and other parts.
3. High-precision machining means to make the motor, long axis, hopper metering screw, cup to achieve a high degree of concentricity, so that can improve operating efficiency and reduce the wear of the metering screw, and greatly reduces the metering screw disoriented failure.after machine is moving, cleaning and long time stirring.
4. Calculate cup and the silo adopt quick-connect clamp connection, use more easily.
Application
This machine is suitable for any kinds of powder, such as milk powder,flour powder,coffee powder,seasoner,additive,pesticide and chemical appliance.
