KLP-PF-03
KLP
350
220V /380V
filling for milk powder,flour powder,coffee powder, seasoning, additive, pesticide and chemical powder
plastic bag,stand up pouch bag
| Quantity: | |
|---|---|

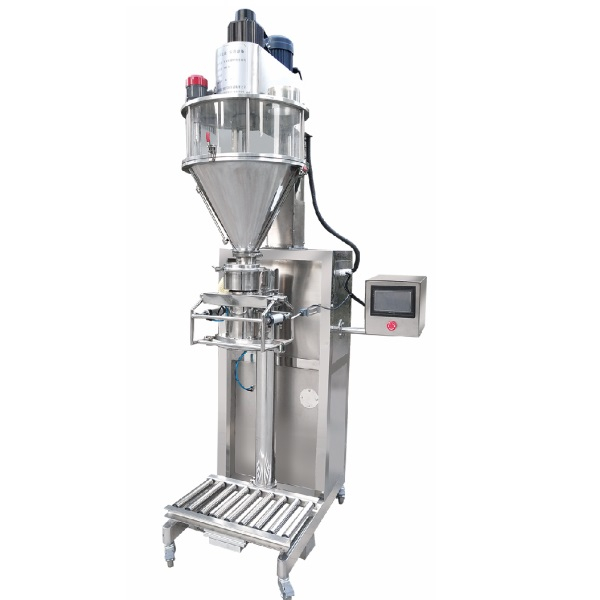

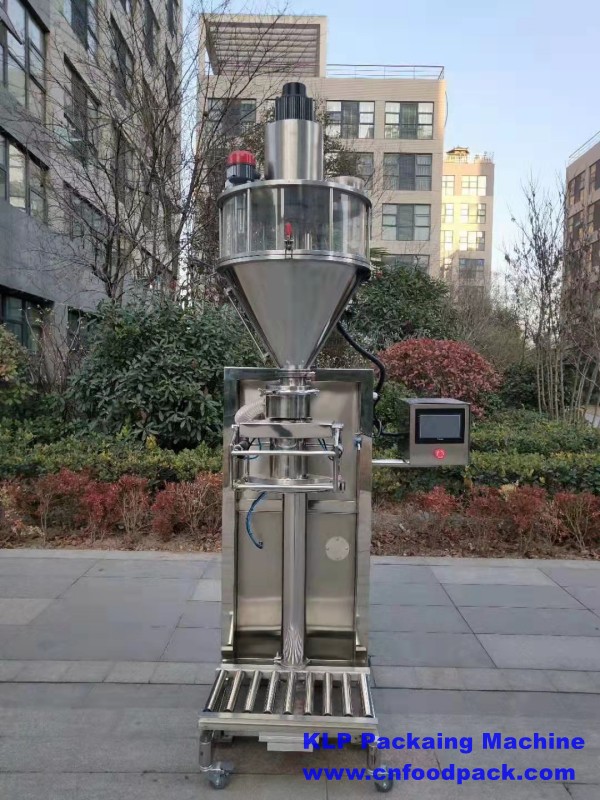

10kg 15kg 20kg 25kg Semi Automatic PLC Control Open Mouth Big Bag Wheat Flour Dry Powder Filling Machine Dust Proof Bag Clamp Powder Filler
Parameter
Filling range | 500g-50kg |
Filling speed | 120-300 bags/h |
Filling accurancy | ±0.1-0.2% |
Power supply | AC380V or 220V ,50Hz |
Hopper Capacity | 70L |
Power | 2.7Kw |
Machine weight | 350kgs |
Machine size | 1000*1000*2500mm |
Intruduction
This machine adopts PLC, Chinese or English touch screen.It’s made of stainless steel, fully meet the requirements of food and medicine. Gear reducer motor for stirring motor and servo motor for filling motor. Against different kinds of packing material, can adopt different mixing mechanism or install the dust removal device, to avoid some special materials leakage or dust phenomenon.
Characteristic
1. Transparent hopper, material operation is at a glance;
2. Hopper can open, cleaning is more convenient and fast. It’s easy to adjust the position of the mixer, so that the packaging accuracy to achieve the best, easy to maintain agitator, metering screw, long axis and other parts.

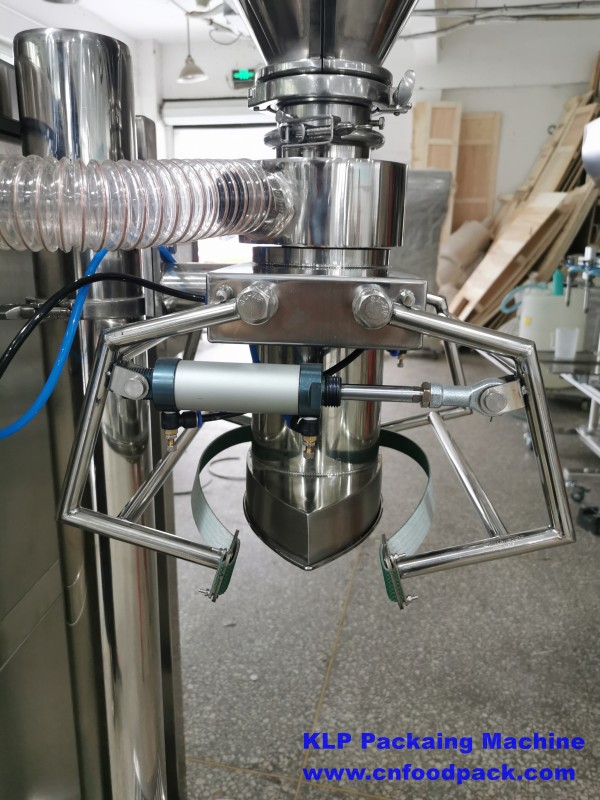

3. Closed bag filling, no dust flying.
4. Fast, middle, slow filling speed and weighing metering make packing faster and precision higher.

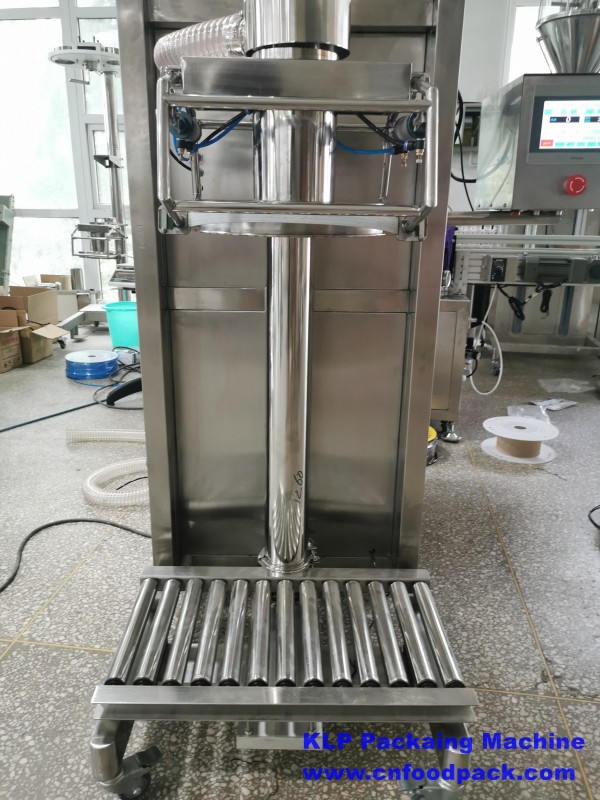

5. Can add roller conveyor belt to save labour during moving the bag.
Application
This machine is suitable for huge packing weight, can pack good fluidity, the uniform proportion powder, such as milk powder,flour powder,coffee powder, seasoning, additive, pesticide and chemical powder.
10kg 15kg 20kg 25kg Semi Automatic PLC Control Open Mouth Big Bag Wheat Flour Dry Powder Filling Machine Dust Proof Bag Clamp Powder Filler
Parameter
Filling range | 500g-50kg |
Filling speed | 120-300 bags/h |
Filling accurancy | ±0.1-0.2% |
Power supply | AC380V or 220V ,50Hz |
Hopper Capacity | 70L |
Power | 2.7Kw |
Machine weight | 350kgs |
Machine size | 1000*1000*2500mm |
Intruduction
This machine adopts PLC, Chinese or English touch screen.It’s made of stainless steel, fully meet the requirements of food and medicine. Gear reducer motor for stirring motor and servo motor for filling motor. Against different kinds of packing material, can adopt different mixing mechanism or install the dust removal device, to avoid some special materials leakage or dust phenomenon.
Characteristic
1. Transparent hopper, material operation is at a glance;
2. Hopper can open, cleaning is more convenient and fast. It’s easy to adjust the position of the mixer, so that the packaging accuracy to achieve the best, easy to maintain agitator, metering screw, long axis and other parts.
3. Closed bag filling, no dust flying.
4. Fast, middle, slow filling speed and weighing metering make packing faster and precision higher.
5. Can add roller conveyor belt to save labour during moving the bag.
Application
This machine is suitable for huge packing weight, can pack good fluidity, the uniform proportion powder, such as milk powder,flour powder,coffee powder, seasoning, additive, pesticide and chemical powder.
