KLP-GX-12
KLP
220V /380V
filling for dialysis fluids, reagents

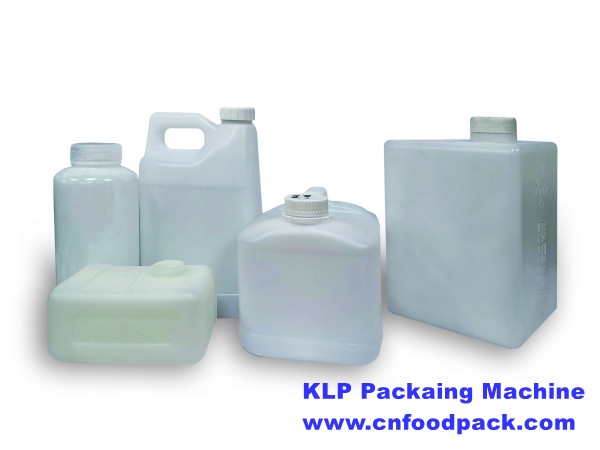

Glass, Plastic bottles
| Quantity: | |
|---|---|

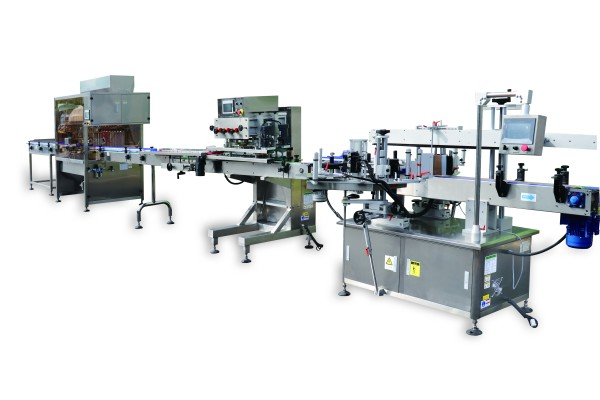

1L-5L Dialyses Reagent Pharmaceutical Bottle And Various Bucket Filling And Capping Production Line
Parameter
Model No. | KLP-GX-12 | KLP-GX-18 |
Stable production capacity (take 1L as an example) | 50-60 bottles/min | 70-80 bottles/min |
Number of filling heads | 12 | 18 |
Number of capping heads | 1 | 1 |
Filling accuracy | ≤±0.5% | |
Capping pass rate | ≥99.9% | |
Power supply | 220/380V 50/60HZ | |
Electric power | ≤10KW | ≤15KW |
Introduction
This production line is suitable for the filling and capping production of dialysis fluids, reagents and other liquids in the pharmaceutical, biological, and other industries.
The entire production process meets the requirements of the new national GMP. The production line inherits the advanced technology in the pharmaceutical field and incorporates a number of independent research and development and innovation technologies.
Characteristics
Different filling methods are used according to different occasions (servo filling, peristaltic pump filling, self-flow filling, etc.),
To ensure that the liquid medicine is pollution-free, and the filling precision is high.

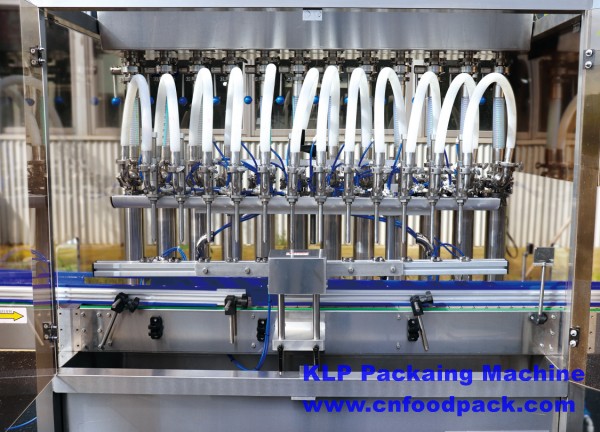

The man-machine interface can adjust the loading volume, which is easy to operate and easy to adjust. The filling needle is designed with an anti-drip device. When filling, it dives into the bottom of the bottle for filling, and lifts while filling to prevent foaming.
The capping adopts six-wheel rolling capping or three-claw pneumatic capping head capping, servo-driven, and adjustable torque.
Application
Filling for dialysis fluids, reagents and other liquids in the pharmaceutical, biological, and other industries.
1L-5L Dialyses Reagent Pharmaceutical Bottle And Various Bucket Filling And Capping Production Line
Parameter
Model No. | KLP-GX-12 | KLP-GX-18 |
Stable production capacity (take 1L as an example) | 50-60 bottles/min | 70-80 bottles/min |
Number of filling heads | 12 | 18 |
Number of capping heads | 1 | 1 |
Filling accuracy | ≤±0.5% | |
Capping pass rate | ≥99.9% | |
Power supply | 220/380V 50/60HZ | |
Electric power | ≤10KW | ≤15KW |
Introduction
This production line is suitable for the filling and capping production of dialysis fluids, reagents and other liquids in the pharmaceutical, biological, and other industries.
The entire production process meets the requirements of the new national GMP. The production line inherits the advanced technology in the pharmaceutical field and incorporates a number of independent research and development and innovation technologies.
Characteristics
Different filling methods are used according to different occasions (servo filling, peristaltic pump filling, self-flow filling, etc.),
To ensure that the liquid medicine is pollution-free, and the filling precision is high.
The man-machine interface can adjust the loading volume, which is easy to operate and easy to adjust. The filling needle is designed with an anti-drip device. When filling, it dives into the bottom of the bottle for filling, and lifts while filling to prevent foaming.
The capping adopts six-wheel rolling capping or three-claw pneumatic capping head capping, servo-driven, and adjustable torque.
Application
Filling for dialysis fluids, reagents and other liquids in the pharmaceutical, biological, and other industries.
