Big Carton Box Labeling Machine for New Zealand Customer
Customer's requirement:
Labeling on serveral different sizes flat carton boxes , one box can put two labels (same size ). Also require which can put 3 or 4 labels in the future .
Labeling machine should include automatic box feeder and seperating device and box collection device after labeling .
Machine parameter :
Label length: 10-200mm
Label height: 10－110mm
Product size: Length: 350-760mm Width: 220-600mm
Conveyor belt width: 600mm
Labeling table height: 760-820mm
Labeling accuracy: ±1mm
Labeling speed: 0-20m/min
Host direction: from right to left
Power supply: 220V 50-60Hz;
Machine power: 900W
Machine overall: 2500*800*1550mm
Our engineer design the machine according to customer's special needs.

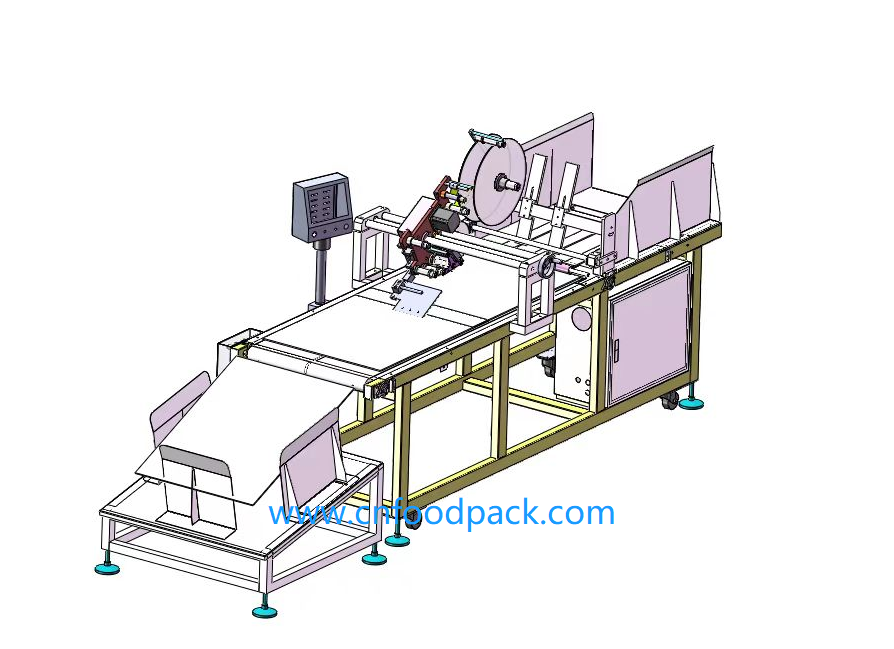

Our drawing :

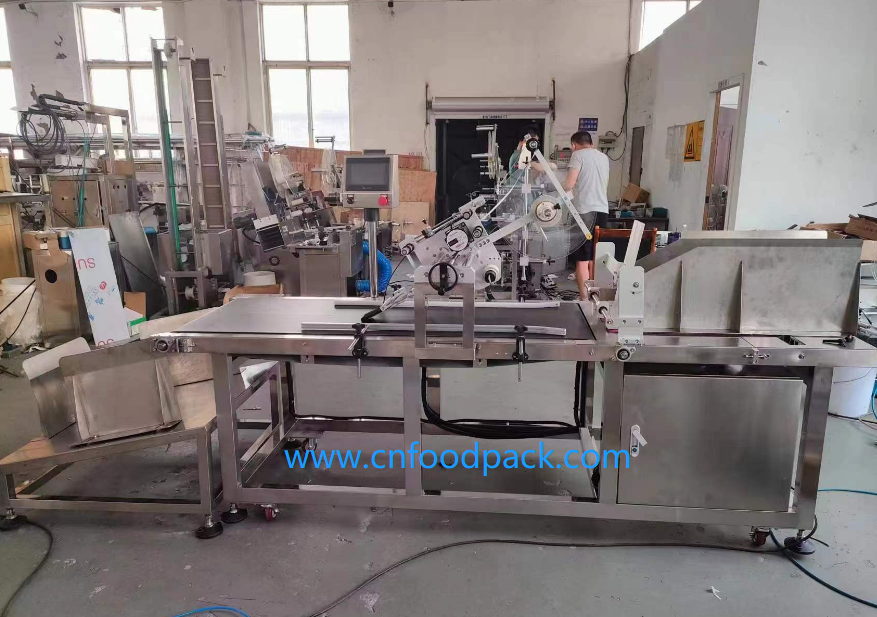

Finnal finished box labeling machine according drawing :

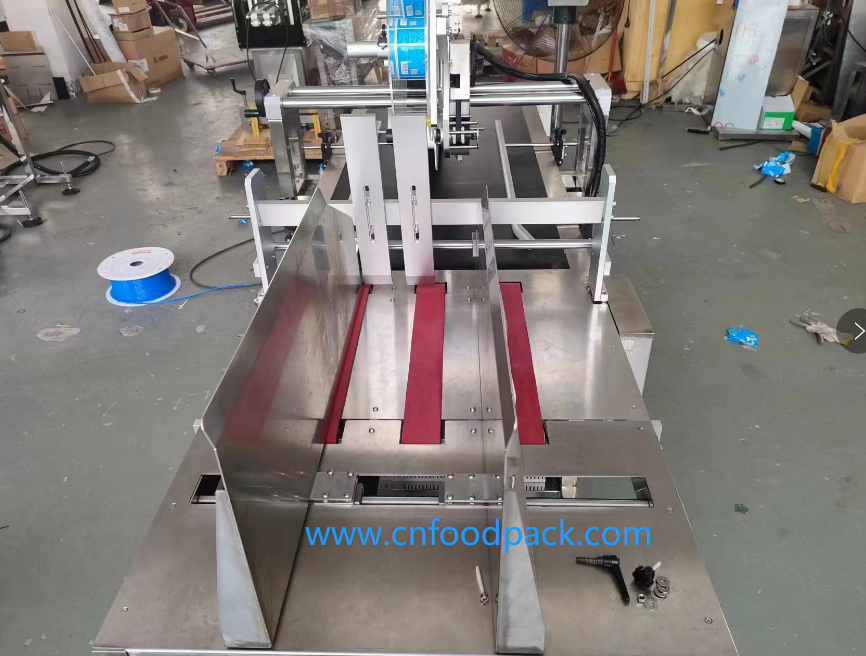

labeling machine --automatic box seperating device

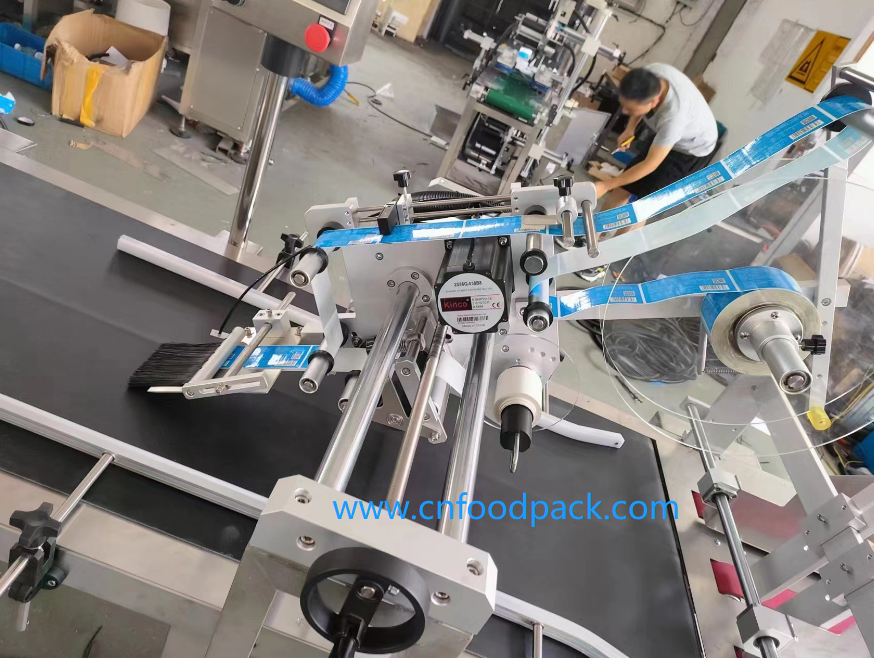

labeling machine-labeling applicator

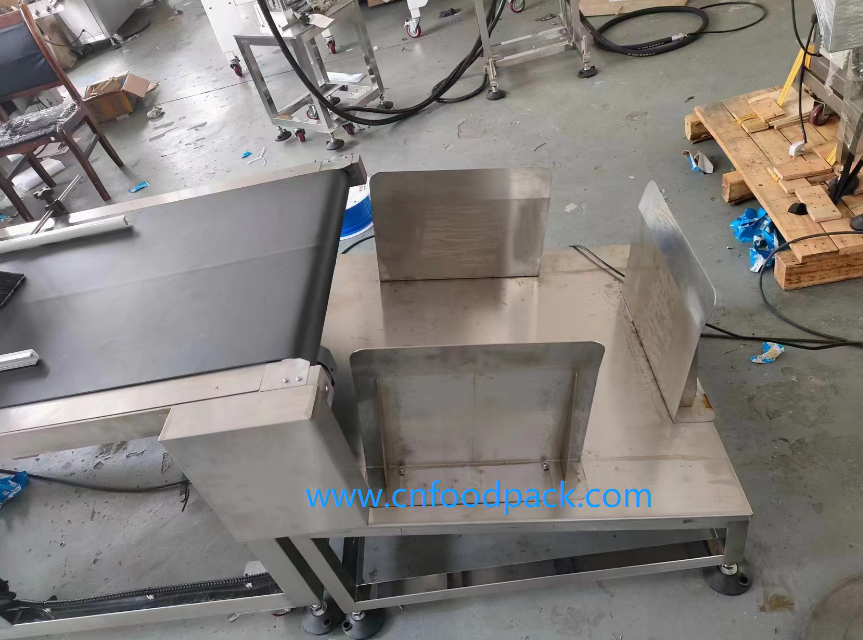

labeling machine--box collection device after labeling

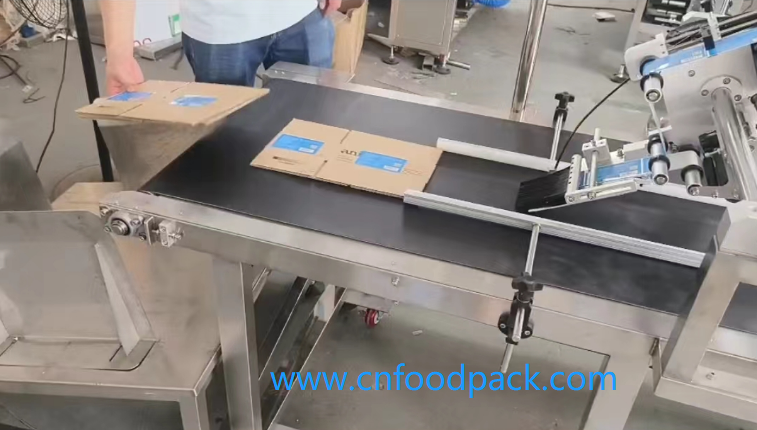

Labeling machine testing for labeling 2 labels and 3 labels
2 labels
3 labels
Plywood case packaging to protect the machine during shipping
