KLP-CZ-B2
KLP
220V /380V
filling for Car Motor Gear Engine Lube Oil Paint Liquid mineral water
Glass, Plastic bottles
| Quantity: | |
|---|---|

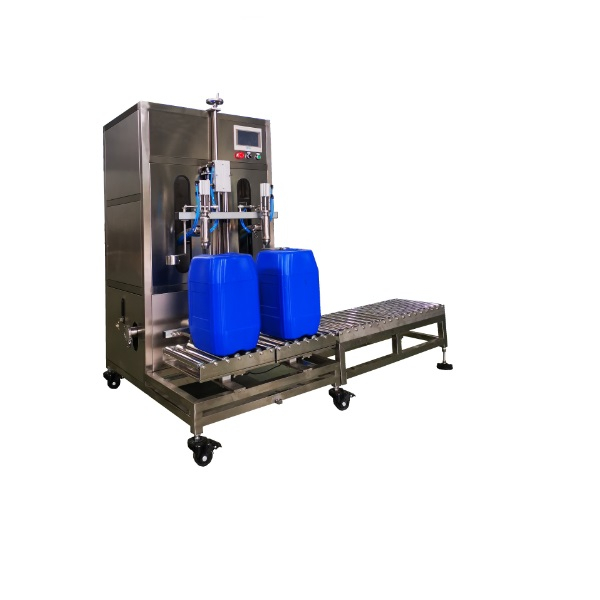

Semi Automatic 2 Heads Car Motor Gear Engine Lube Oil Paint Liquid Big Barrel Bucket Drum Weighing Filling Machine
Parameter
Model | KLP-CZ-B2 |
Weighing range | 0-40kg |
filling speed | 120-240 times/h |
Filling accurancy | ±0.1% |
Power supply | 380V 50Hz |
Pressure | 0.4-0.6MPa |
Power | 3.5kw |
Dimensions | 850*1200*1700mm |
Introduction
Vertical semi-automatic double-head weighing filling machine, this product is a program-controlled intelligent product that integrates mechanics, electricity and gas.
Characteristics
1. The weighing touch screen PLC integrated machine program control is adopted, the calculation is accurate and fast, and the real-time monitoring of the operation of the filling machine can realize modern management.
2. The weighing module is based on a 60KG load cell, which is stable and reliable, with quality assurance.
The weighing pan of the filling machine is conveyed by an unpowered roller, which can convey a maximum of 40 kg of large barrels (other conveying weights can be customized).
3. The filling valve adopts high-efficiency pneumatic valve, which has a good sealing effect and ensures no dripping.
In addition, a liquid contact device is installed to prevent leakage when the sealing ring of the filling head is damaged.
4. The material conveying pipeline, power pump and body of the filling machine are made of S304 stainless steel.
The built-in frequency converter can adjust the feeding speed of the material pump to ensure the filling speed. The power pump adopts 1.5KW stainless steel gear pump.
5. The bottom of the filling machine is equipped with heavy duty rollers, which is convenient for the equipment to move.
Application
Mainly used for large-dose quantitative filling of edible oil, soy sauce and chemical raw materials, especially suitable for automatic quantitative filling of coatings and oils in the chemical industry, and also suitable for automatic quantitative filling of emulsion materials in the food and pharmaceutical industries.
Suitable for filling materials:
1. Coatings: waterproof coatings (component A, component B, silicone), emulsion, exterior paint, asphalt, paint, etc.
2. Food: milk, edible oil, cream, etc.
3. Daily chemicals: detergent, laundry detergent, toilet cleaner, etc.
Semi Automatic 2 Heads Car Motor Gear Engine Lube Oil Paint Liquid Big Barrel Bucket Drum Weighing Filling Machine
Parameter
Model | KLP-CZ-B2 |
Weighing range | 0-40kg |
filling speed | 120-240 times/h |
Filling accurancy | ±0.1% |
Power supply | 380V 50Hz |
Pressure | 0.4-0.6MPa |
Power | 3.5kw |
Dimensions | 850*1200*1700mm |
Introduction
Vertical semi-automatic double-head weighing filling machine, this product is a program-controlled intelligent product that integrates mechanics, electricity and gas.
Characteristics
1. The weighing touch screen PLC integrated machine program control is adopted, the calculation is accurate and fast, and the real-time monitoring of the operation of the filling machine can realize modern management.
2. The weighing module is based on a 60KG load cell, which is stable and reliable, with quality assurance.
The weighing pan of the filling machine is conveyed by an unpowered roller, which can convey a maximum of 40 kg of large barrels (other conveying weights can be customized).
3. The filling valve adopts high-efficiency pneumatic valve, which has a good sealing effect and ensures no dripping.
In addition, a liquid contact device is installed to prevent leakage when the sealing ring of the filling head is damaged.
4. The material conveying pipeline, power pump and body of the filling machine are made of S304 stainless steel.
The built-in frequency converter can adjust the feeding speed of the material pump to ensure the filling speed. The power pump adopts 1.5KW stainless steel gear pump.
5. The bottom of the filling machine is equipped with heavy duty rollers, which is convenient for the equipment to move.
Application
Mainly used for large-dose quantitative filling of edible oil, soy sauce and chemical raw materials, especially suitable for automatic quantitative filling of coatings and oils in the chemical industry, and also suitable for automatic quantitative filling of emulsion materials in the food and pharmaceutical industries.
Suitable for filling materials:
1. Coatings: waterproof coatings (component A, component B, silicone), emulsion, exterior paint, asphalt, paint, etc.
2. Food: milk, edible oil, cream, etc.
3. Daily chemicals: detergent, laundry detergent, toilet cleaner, etc.
