KLP-220
KLP
220V 50Hz
Beverage, Chemical, Commodity, Food
paper box, bottle, bag and so on
| Quantity: | |
|---|---|

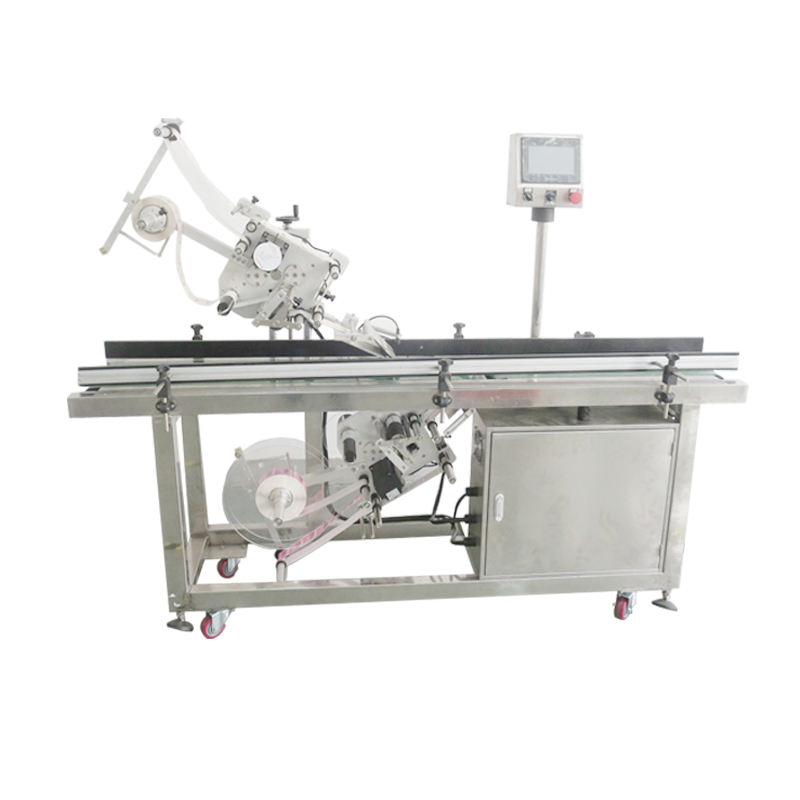

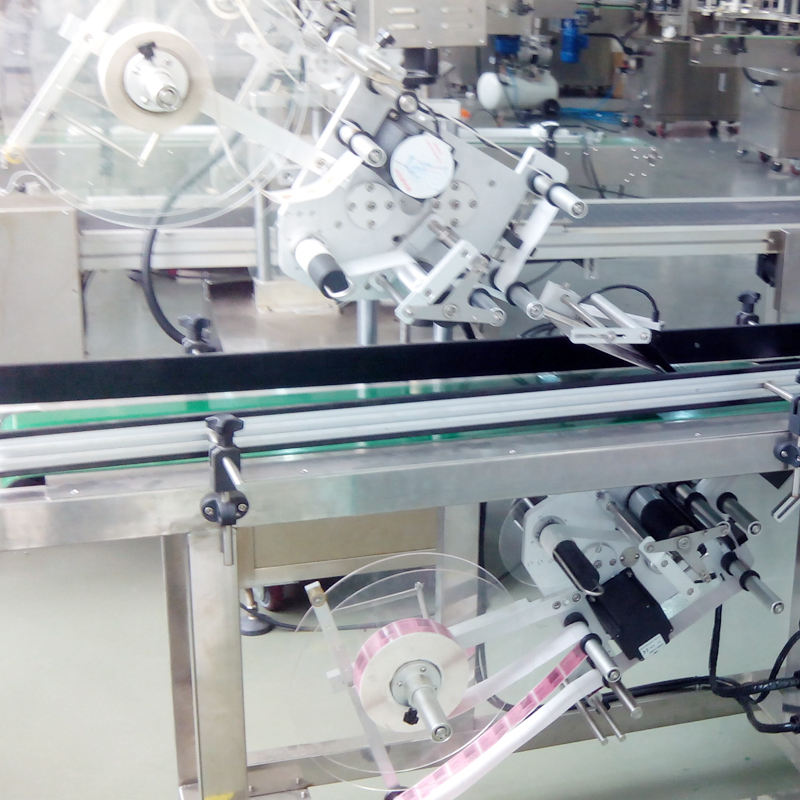

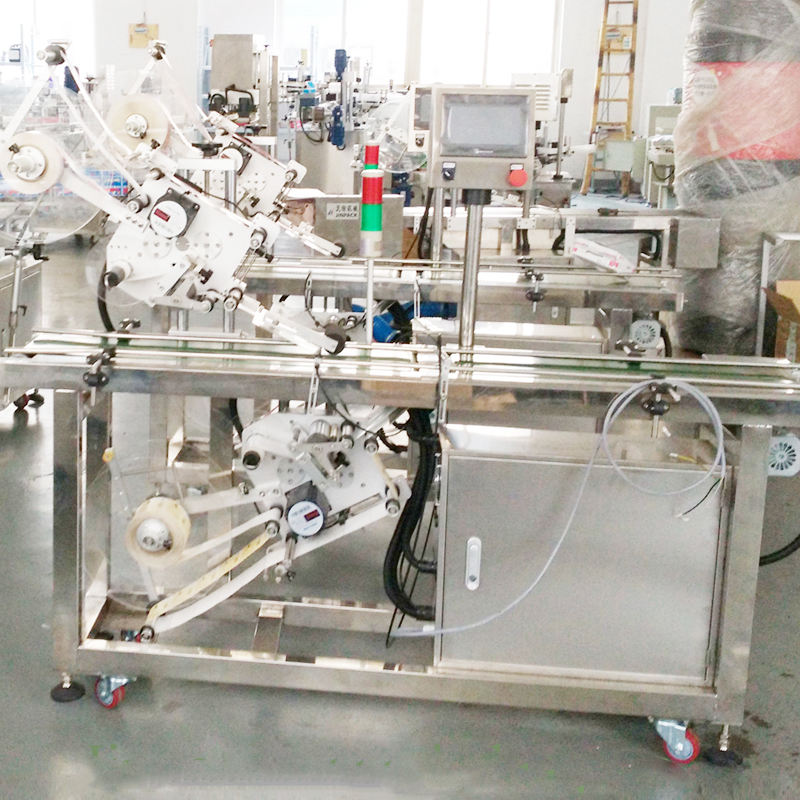

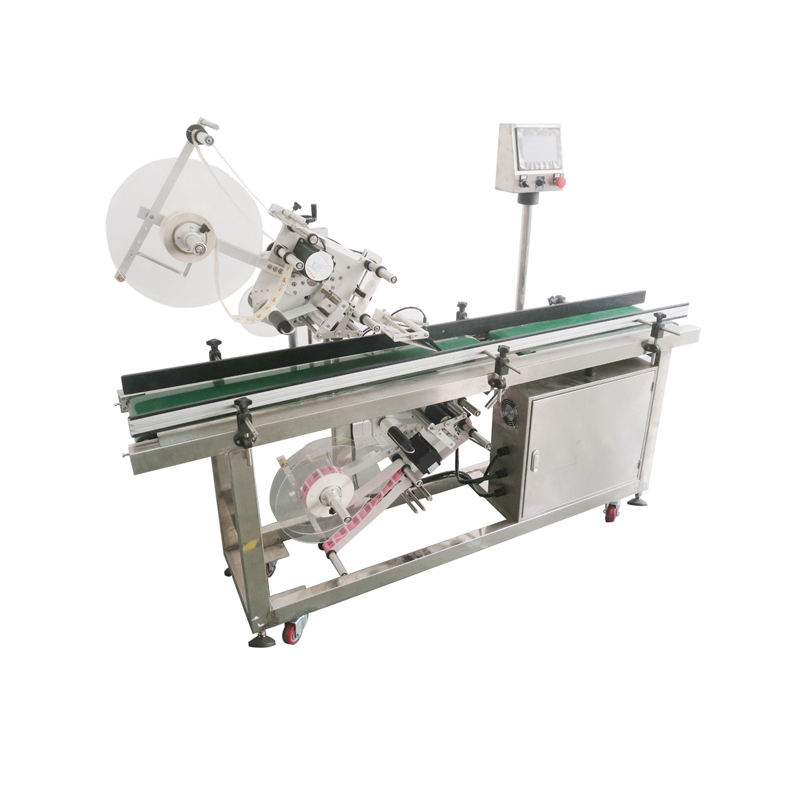

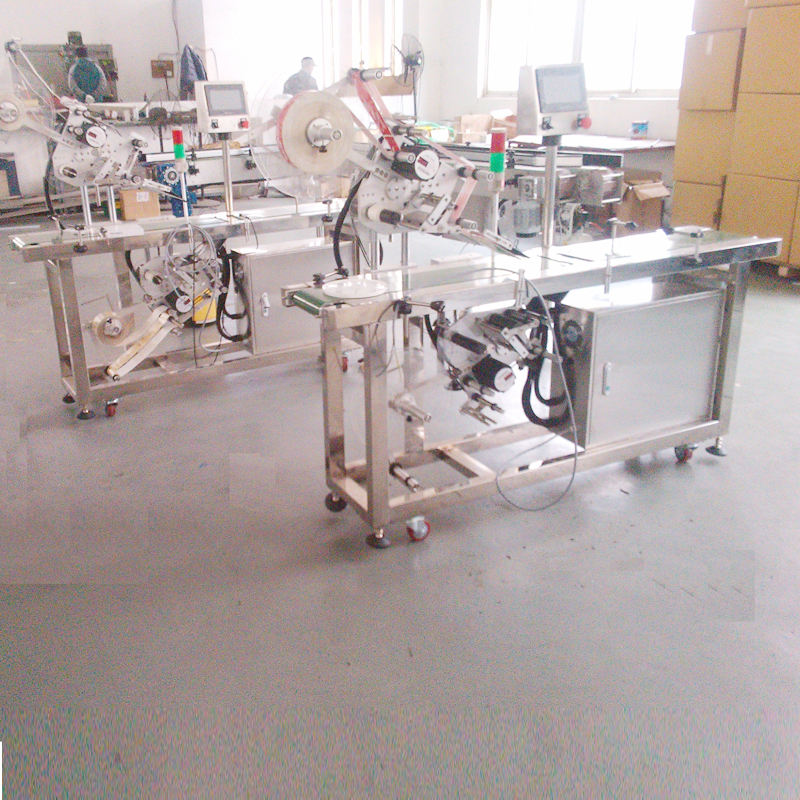

Auto Carton Box Surface Labeling Machine Top And Bottom Two Sides Label Applicator for Box Container
parameter
| Product Name | Automatic Top And Bottom Two Sides Label Applicator |
| Model | KLP-220 |
Power Supply | 110/220V, 50/60Hz, 600W |
Labeling Speed | 0-25meter/min |
Labeling Precision | ±1mm(exduded product and label precision) |
Product width | 10-200mm (other measurement can be customized) |
Label width | 10-120mm (other measurement can be customized) |
Label reel diameter | inner 76mm;outer 360mm(max) |
Machine Size | L*W*H=2000*850*1550mm |
Characteristics
(1). PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
(2).The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminium alloy.
(3).The machine has many functions such as guiding,separating,labeling,attaching, counting
(4). The labeling position of height can be adjusted.
(5). The machine can be used in production line with conveyor belt.
(6). The special machine can be customized according to customer requirements.
Application
This KLP-610Y side labeler with stand can be used alongside existing conveyor systems,the label should be labeled on the side plane of the product.
Q1: What is your company’s main products?
Chengdu KLP (Packaging) Machinery CO., Ltd. mainly offer Semi Automatic Filling Machine ,Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines etc.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
