KLP-YL-18/24
KLP
220V /380V
filling for Soy Sauce Vinegar Juice Wine Mineral Water Liquid
Glass, Plastic bottles
| Quantity: | |
|---|---|

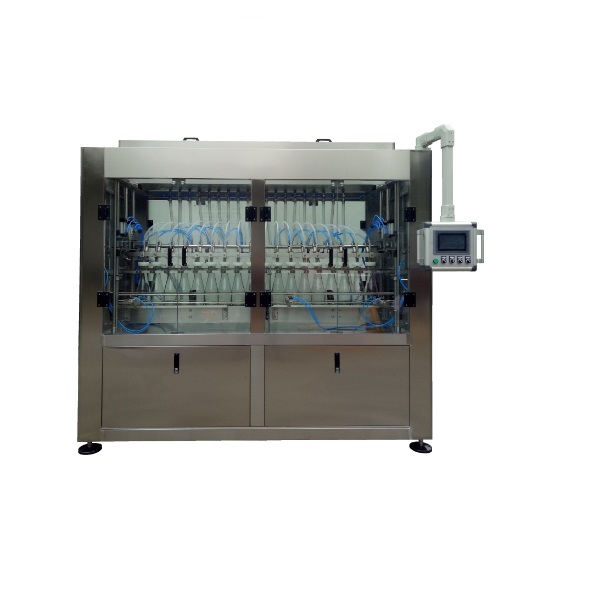

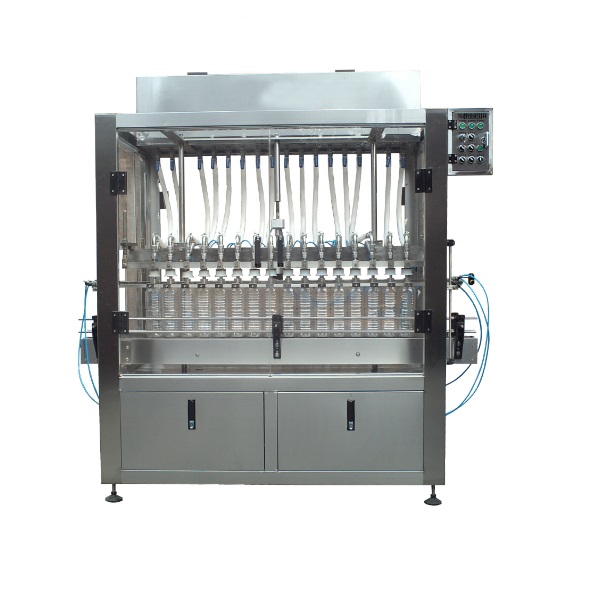

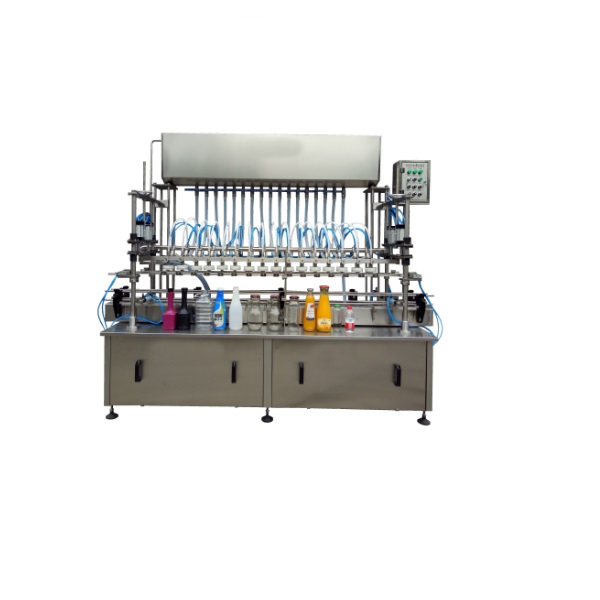

Automatic 18 to 24 heads Linear Overflow Deforming Soy Sauce Vinegar Juice Wine Mineral Water Liquid Bottle Filling Machine
Parameter
| Model | KLP-YL-18/24 |
Filling range | 50～5000ml |
Number of filling heads | 8-24 heads |
Filling accuracy | Liquid level error 2mm |
compressed air pressure | ≤0.6Mpa |
adapt to the mouth of the bottle | >22mm |
Adapt to bottle height | 100—320mm |
Adapt to bottle diameter | 60—150mm |
production capacity | 500—3500P/H |
Introduction
This type linear overflow defoaming liquid filling machine is suitable for liquid filling that is easy to foam, and also suitable for non-foaming liquid.
The filling liquid can not only prevent the foam from overflowing, but also keep the liquid level consistent. It can be used alone or in line with other equipment. It is currently the most ideal liquid level filling machine for defoaming in China.
The machine integrates domestic and foreign advanced technology, adopts PLC and electronic fiber optic sensor control, and microcomputer control operation. It can be filled with bottles and stopped without bottles.
The equipment adopts an overflow filling mechanism. When filling, the filling head presses down the bottle mouth to close the bottle mouth. When the filling head closes the bottle mouth, the filling valve automatically opens to fill the material into the bottle.
After the filling is completed, the filling head is automatically raised and closed automatically, and there is no material leakage.
The surface of the bottle after filling is clean and hygienic, and no liquid overflows the bottle mouth.
The equipment is suitable for filling of various liquids, such as pharmaceutical, chemical, pesticide, food and beverage, cosmetics and other industries. The equipment surface and material contact surface are made of 304 stainless steel material, no dripping, easy to clean. No dead angle, fully in line with national hygiene standard requirement.
Characteristics
1. The advanced pneumatic valve is used for filling, and the backflow filling head sucks back the foam and excess liquid to prevent the overflow of foam and excess liquid, prevent dripping, and keep the liquid level consistent.
2. The low-level liquid storage tank is adopted, which is convenient for cleaning and disinfection of the whole machine.
3. Using the bottle mouth device, after the filling bottle mouth is accurately positioned, the filling head extends into the bottle for filling.
4. The filling volume is easy to adjust and the operation is simple, and the filling of bottles of different specifications can be replaced in a short time.
5. There are certain requirements for the integrity of the bottle mouth.
Application
The equipment is suitable for filling of various liquids, such as pharmaceutical, chemical, pesticide, food and beverage, cosmetics and other industries. Such as soy sauce vinegar juice wine mineral water liquid.
Automatic 18 to 24 heads Linear Overflow Deforming Soy Sauce Vinegar Juice Wine Mineral Water Liquid Bottle Filling Machine
Parameter
| Model | KLP-YL-18/24 |
Filling range | 50～5000ml |
Number of filling heads | 8-24 heads |
Filling accuracy | Liquid level error 2mm |
compressed air pressure | ≤0.6Mpa |
adapt to the mouth of the bottle | >22mm |
Adapt to bottle height | 100—320mm |
Adapt to bottle diameter | 60—150mm |
production capacity | 500—3500P/H |
Introduction
This type linear overflow defoaming liquid filling machine is suitable for liquid filling that is easy to foam, and also suitable for non-foaming liquid.
The filling liquid can not only prevent the foam from overflowing, but also keep the liquid level consistent. It can be used alone or in line with other equipment. It is currently the most ideal liquid level filling machine for defoaming in China.
The machine integrates domestic and foreign advanced technology, adopts PLC and electronic fiber optic sensor control, and microcomputer control operation. It can be filled with bottles and stopped without bottles.
The equipment adopts an overflow filling mechanism. When filling, the filling head presses down the bottle mouth to close the bottle mouth. When the filling head closes the bottle mouth, the filling valve automatically opens to fill the material into the bottle.
After the filling is completed, the filling head is automatically raised and closed automatically, and there is no material leakage.
The surface of the bottle after filling is clean and hygienic, and no liquid overflows the bottle mouth.
The equipment is suitable for filling of various liquids, such as pharmaceutical, chemical, pesticide, food and beverage, cosmetics and other industries. The equipment surface and material contact surface are made of 304 stainless steel material, no dripping, easy to clean. No dead angle, fully in line with national hygiene standard requirement.
Characteristics
1. The advanced pneumatic valve is used for filling, and the backflow filling head sucks back the foam and excess liquid to prevent the overflow of foam and excess liquid, prevent dripping, and keep the liquid level consistent.
2. The low-level liquid storage tank is adopted, which is convenient for cleaning and disinfection of the whole machine.
3. Using the bottle mouth device, after the filling bottle mouth is accurately positioned, the filling head extends into the bottle for filling.
4. The filling volume is easy to adjust and the operation is simple, and the filling of bottles of different specifications can be replaced in a short time.
5. There are certain requirements for the integrity of the bottle mouth.
Application
The equipment is suitable for filling of various liquids, such as pharmaceutical, chemical, pesticide, food and beverage, cosmetics and other industries. Such as soy sauce vinegar juice wine mineral water liquid.
