KLP-CZ-6
KLP
220V /380V
filling for Milk Laundry Liquid Edible Oil Mineral Water Petroleum Liquid
Glass, Plastic bottles
| Quantity: | |
|---|---|

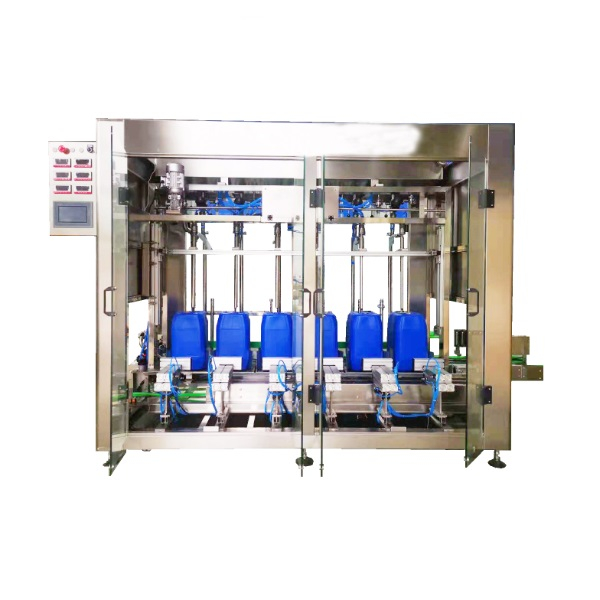

Automatic 6 Heads 25kg Big Bucket Milk Laundry Liquid Edible Oil Mineral Water Petroleum Liquid Weighing Filling Machine
Parameter
Model | KLP-CZ-6 |
Weighing range | 0-40kg |
filling speed | 240-500 times/h |
Filling accurancy | ±0.1% |
Power supply | 380V 50Hz |
Pressure | 0.4-0.6MPa |
Power | 4kw |
Dimensions | 2440×1500×2300mm |
Introduction
This 6 Heads 25kg Big Bucket Milk Laundry Liquid Edible Oil Mineral Water Petroleum Liquid Weighing Filling Machine is a program-controlled intelligent product integrating machine, electricity and gas.
Characteristics
1. Using PLC and digital instrument to jointly control the precision, the calculation is accurate and fast, and the real-time monitoring of the filling machine operation can realize modern management.
2. The weighing module adopts the weighing sensor, which is stable and reliable, and the quality is guaranteed.
3. The high-speed filling machine is conveyed by power chain plates, which can convey a maximum of 40 kilograms of barrels (other conveying weights can be customized).
4. The filling valve adopts high-efficiency pneumatic valve, which has good sealing effect and ensures no dripping.
A submersible mechanism can be added to make the liquid flow out under the liquid surface to ensure that the foaming liquid does not foam when filling.
5. The conveying pipeline and body of the high-speed filling machine are made of S304 stainless steel.
The built-in frequency converter can adjust the feeding speed of the material pump to ensure the filling speed.
6. The low-speed filling machine adopts the self-flow weighing filling of the storage box, and is controlled by digital instruments (no pump, no touch screen PLC). Simple structure and affordable price.
Application
Mainly used for large-dose quantitative filling of edible oil, soy sauce and chemical raw materials, especially suitable for automatic quantitative filling of coatings and oils in the chemical industry, and also suitable for automatic quantitative filling of emulsion materials in the food and pharmaceutical industries.
Suitable for filling materials:
1. Coatings: waterproof coatings (component A, component B, silicone), emulsion, exterior paint, asphalt, paint, etc.
2. Food: milk, edible oil, cream, etc.
3. Daily chemicals: detergent, laundry detergent, toilet cleaner, etc.
4. liquid fertilizer
