KLP-XGSX-2
KLP
600
220V /380V
filling for eye drop , E-liquid ,Cbd Oil ,essential oil ,e-juice
Glass, Plastic bottles
| Quantity: | |
|---|---|

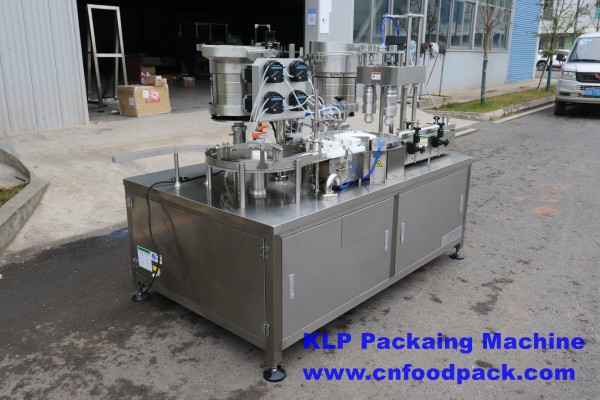

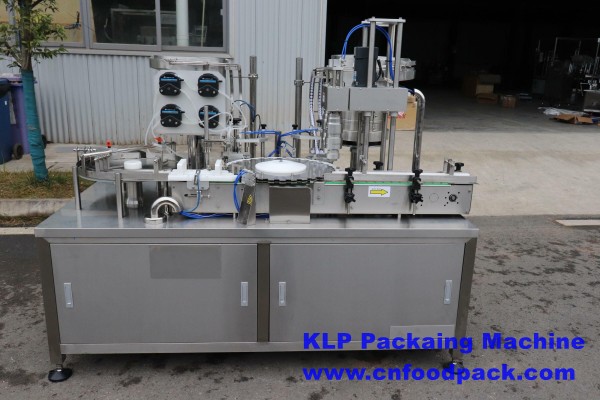

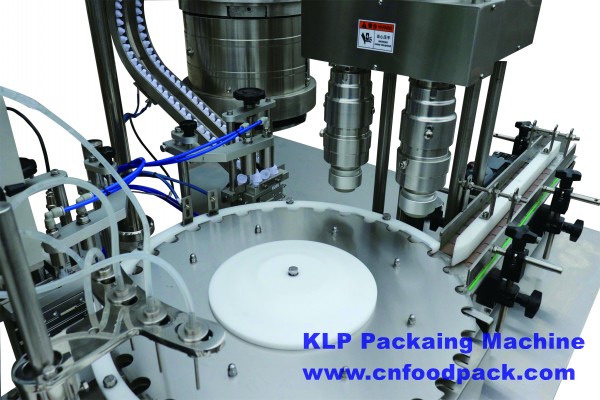

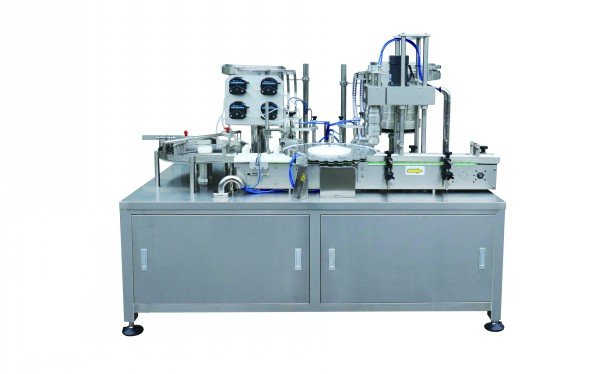

Automatic E-liquid Eye Drop Cbd Oil Bottle Liquid Filling Capping Machine
Parameter
Model No. | KLP-XGSX-2 | KLP-XGSX-4 |
Productivity （bottles/min） | 40-60 | 60-110 |
Number of filling heads | 2 | 4 |
Number of plug heads | 1 | 2 |
Number of capping heads | 1 | 2 |
Filling accuracy | ≤±1% | ≤±1% |
Internal plug rate | ≥99% | ≥99% |
Outter cover rate | ≥99% | ≥99% |
Pass rate | ≥99% | ≥99% |
Power supply | 220/380V 50/60HZ | 220/380V 50/60HZ |
Compressed air pressure | 0.4- 0.6MP | 0.4- 0.6MP |
Electric power | 3.5KW | 5KW |
Weight | 600kg | 1200kg |
Dimension | 2000mm×1100mm×1500mm | 2200mm×1300mm×1600mm |
Introduction
The eye drops aseptic filling machine production line can complete the bottle unscramble, add the inner plug, add the external caps.
The process of capping and screwing the outer cap is also suitable for the production of other small-capacity plastic bottle products.
The machine complies with the new GMP requirements.
Chracteristics
- Touch screen operation platform, PLC control, host frequency conversion speed regulation;
- Intermittently type bottle feeding mechanism, stable and reliable operation;
- The human-machine interface adjustment of filling volume can be driven by peristaltic pump and servo motor;
- Optional gas washing bottle function;
- No bottle, no filling, inner plug by the manipulator, no bottle,no inner plug;
- No inner plug, no outer cover. No plug and no cover protection system;
- Stop when there is no bottle , and start automatically when there is a bottle;
- Economical and practical machine , fully comply with GMP requirements
Application

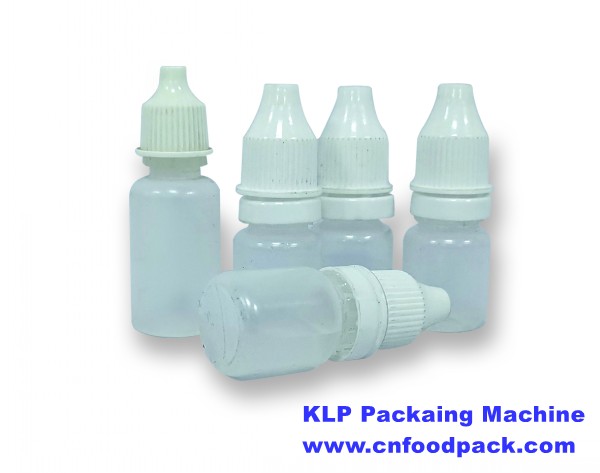

Filling and capping for eye drop , E-liquid ,Cbd Oil ,essential oil ,e-juice.
