KLP-250X
KLP
430
220V 50Hz
Commodity, Machinery & Hardware, Textiles,Food
plastic film like OPP/CPP. OPP/CE, MST/PE
| Quantity: | |
|---|---|

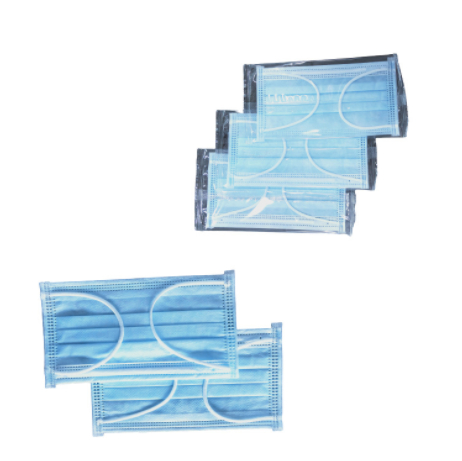

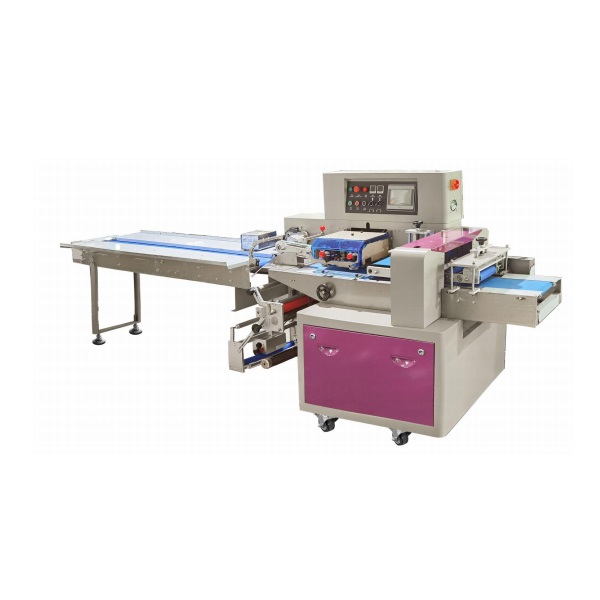

Automatic Face Mask Flow Packing Machine Surgical Medical Face Mask Packing Machinery Wrapping Machine for Face Mask
Parameter
Model | KLP-250X | KLP-350X | KLP-450X | KLP-600X |
Film width | Max.250mm | Max.350mm | Max.450mm | Max.600mm |
Bag length | 120-180mm Or 60-190mm | 65-190mm or 120-180mm | 120-420mm or 150-470mm | 120-420mm or 150-470mm |
Bag width | 30-110mm | 50-160mm | 145-158mm or 185-210mm | 145-185mm or 195-285mm |
Product height | Max.40mm | Max.45mm | Max.80mm | Max.80mm |
Film roll diameter | Max.320mm | |||
Packing speed | 40-230bag/min | 20-120bag/min | ||
Power supply | 220V,50/60HZ,2.4KVA | |||
Size | 3920X 670X1320mm | 4020x720x1320mm | 4400x1100x1468mm | 4400x1100x1468mm |
Weight | 430Kg | 550Kg | 580Kg | 620Kg |
Characteristics
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. interface features easy and quick setting and operation.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
Optional device
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen
Packaging soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, ice-lollies, soft candies, fresh fruits, etc.
