KLP-210D
KLP
220V 50Hz
Beverage, Chemical, Commodity, Food
paper box, bottle, bag and so on
| Quantity: | |
|---|---|

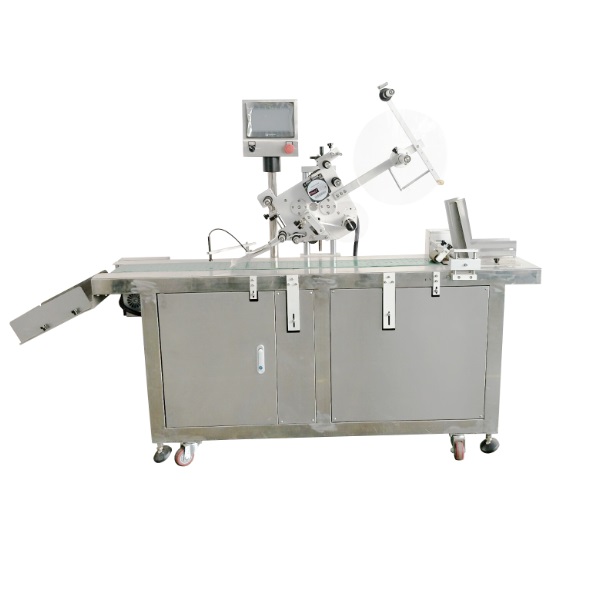

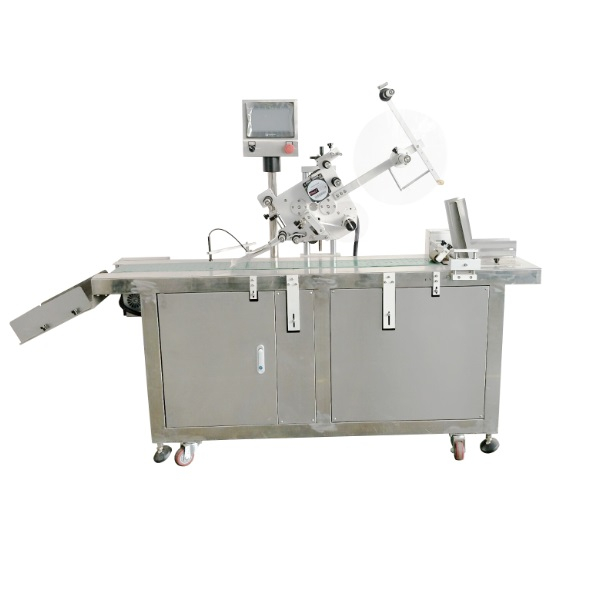

Automatic Flat Plastic Bag Flat Surface Kraft Paper Labeling Machine Label Applicator Machine
parameter
Power Supply | 110/220V, 50/60Hz, 800W |
Labeling Speed | 0-25meter/min |
Labeling Precision | ±1mm(exduded product and label precision) |
Product width | 10-200mm (other measurement can be customized) |
Label width | 10-120mm (other measurement can be customized) |
Label reel diameter | inner 76mm;outer 360mm(max) |
Machine Size | L*W*H=2500*900*1500mm |
Characteristics
1. PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy.
3.The machine has many functions such as guiding,separating,labeling,attaching, counting
4.The labeling position of height can be adjusted.
5.The machine can be used in production line with conveyor belt.
6. The special machine can be customized according to customer requirement
Application
This machine designed for top labeling on is designed for top labeling on soft flat products,such as plastic bag,foil bag,paper, paper box.It can be incorporated with a line or operated individually.
