KLP-215H
KLP
220V 50Hz
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
plastic ,glass or mental jar, can,tin ,bottle
| Quantity: | |
|---|---|

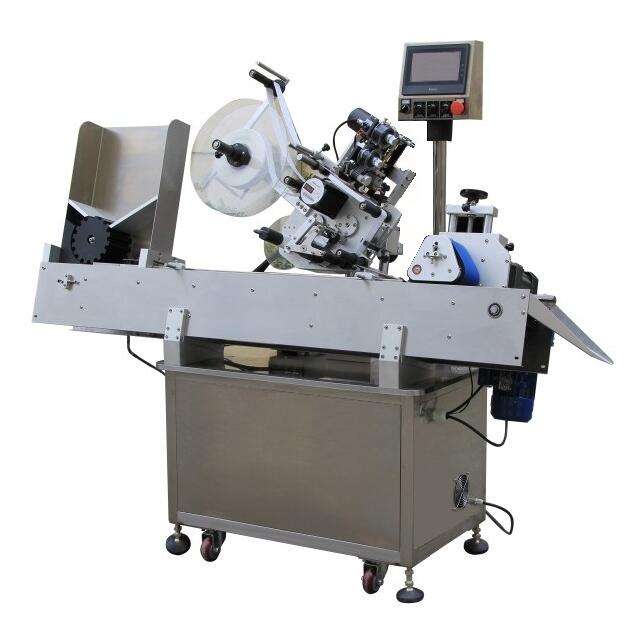

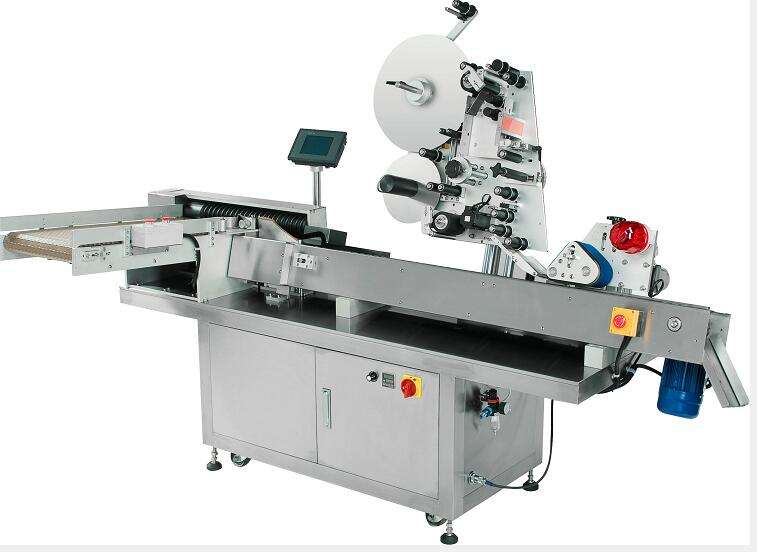

Automatic High Speed Horizontal Wrap-around Labeling Machine for Oral Liquid Vials , Ampules ,testing Kit Bottle
Parameter
| Product Name | Automatic High Speed Horizontal Wrap-around Labeling Machine |
| Model | KLP-215H |
Power Supply | 110/220V, 50/60Hz,1100W |
Labeling Speed | 600 pieces/min |
Labeling Precision | ±1mm(exduded product and label precision) |
Product diameter | 10-25mm (other measurement can be customized) |
Product height | 25-100mm (other measurement can be customized) |
Label width | 10-120mm (other measurement can be customized) |
Label reel diameter | inner 76mm;outer 360mm(max) |
Machine Size | L*W*H=2700*1100*1550mm |
Features
1.PLC combined with LCD touch screen panel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminium alloy.
3. The equipment is suitable for slender round bottle.
4. Use screw to send bottles which makes smoothly and safely.
5. Send bottles in the direction of vertical horizontal to feed stability, use easy and low
labor strength.
6. Use servo motor to make high speed and good stability.
7. The special machine can be customized according to customer requirement
Application
The KLP-215H is designed for non-standing cylindrical containers or products that are not vertically stable (round bottom or top-heavy).
After-sale service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
