KLP-700X
KLP
600
220V 50Hz
Chemical, Commodity, Food, Machinery & Hardware, Medical
plastic film like OPP/CPP PT/PE KOP/CPP ALU-FOIL
| Quantity: | |
|---|---|

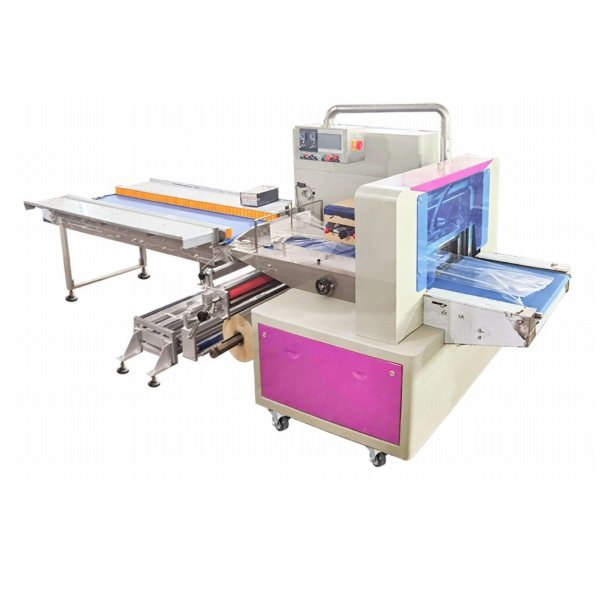

Automatic Pita Bread Arabic Bread Wrapping Packaging Machine Fruit Vegetable Wrapping Packing Machine Pillow Bag Machine
Parameter
Model | KLP-700X | KLP-800X | KLP-900X | ||
Film Width | Max.100-700mm | Max.100-800mm | Max.100-900mm | ||
Bag Length | 120-420/150-500/180-600mm | 120-420/150-500/180-600mm | 120-420/150-500/180-600mm | ||
Bag Width | 50-330mm | 50-380mm | 40-430mm | ||
Product High | Max.80/100/150mm | Max.80/100/150mm | Max.80/100/150mm | ||
Film Rill Diameter | Max.320mm | Max.320mm | Max.320mm | ||
Packing Rate | 20-120bag/min | 20-120bag/min | 20-120bag/min | ||
Powder | 220V/50/60hz，2.4KVA | ||||
Machine size | 4400*1100*1460mm | 4400*1200*1460mm | 4400*1300*1460mm | ||
Weight | 600kg | 700kg | 800kg | ||
Characteristic
1. Double frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
Application
Suitable for packing various of products. Such as bread, pita bread, cookies, biscuits and food type, non food products.
Can making pillow bag, gusset bag, euro hole, Nitrogent filling, etc.
Machine can be adjustable and suitable for various kinds of products.
