KLP-SJP-2
KLP
600
220V /380V
filling for liquid like dialysate, reagents,testing kit
Glass, Plastic bottles
| Quantity: | |
|---|---|

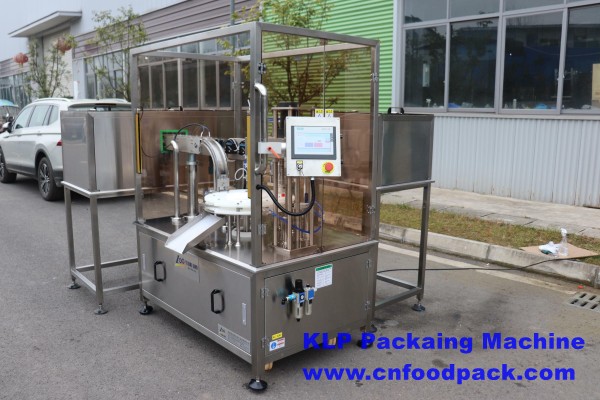

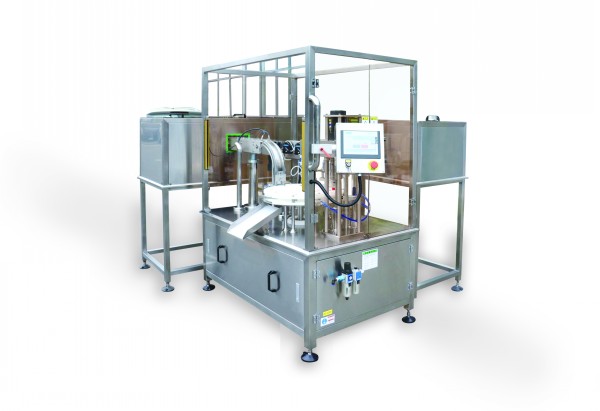

Automatic Reagent Test Tube Filling Machine Pharmaceutical Test Kit Filling Machine Small Tube Filling Machine with Automatic Tube Feeder
Parameter
Model No. | KLP-SJP-2 | KLP-SJP-4 |
Stable production capacity (bottles/min) | 30-50 | 60-80 |
Number of filling heads | 2 | 4 |
Number of caps feeds heads | 1 | 2 |
Number of capping heads | 1 | 2 |
Filling accuracy | ≤±1% | ≤±1% |
Coverage rate | ≥99% | ≥99% |
Pass rate | ≥99% | ≥99% |
Power supply | 220/380V 50/60HZ | 220/380V 50/60HZ |
Compressed air pressure | 0.4- 0.6MP | 0.4- 0.6MP |
Electric power | ≤2KW | ≤4KW |
Weight | 600kg | 1200kg |
Dimensions | 2000mm×1100mm×1500mm | 2200mm×1300mm×1600mm |
Introduction
This series of products are suitable for dialysate, reagents and raw materials in the pharmaceutical, biological, chemical and other industries , the machine meets the requirements of the new version of GMP.
Characteristics
- Touch screen operation platform, PLC control, host frequency conversion speed regulation;
- Intermittently type bottle feeding mechanism, stable and reliable operation;

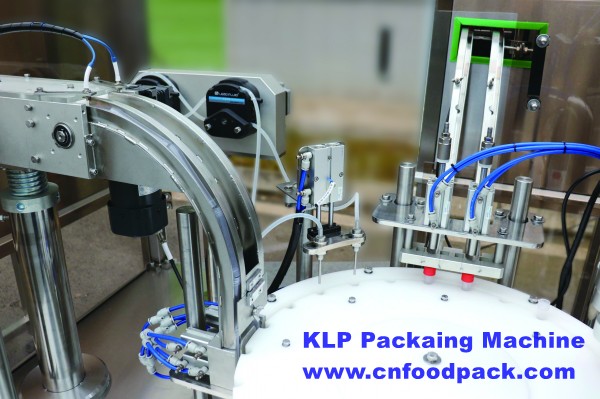

- The human-machine interface adjustment of filling volume can be driven by peristaltic pump and servo motor;
- Optional gas washing bottle function;
- No bottle, no filling, inner plug by the manipulator, no bottle,no inner plug;
- No inner plug, no outer cover. No plug and no cover protection system;
- Stop when there is no bottle , and start automatically when there is a bottle;
- Economical and practical machine , fully comply with GMP requirement
Application

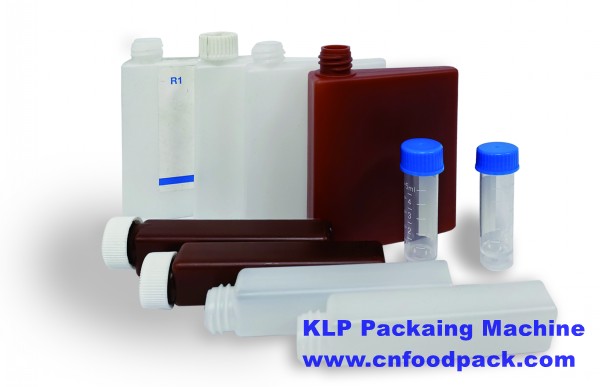

Automatic filling for reagent bottle,testing kit tube, special-shaped bottle, serum, cell culture aseptic filling.
