KLP-515
KLP
220V 50Hz
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
plastic ,glass or mental jar, can,tin ,bottle
| Quantity: | |
|---|---|

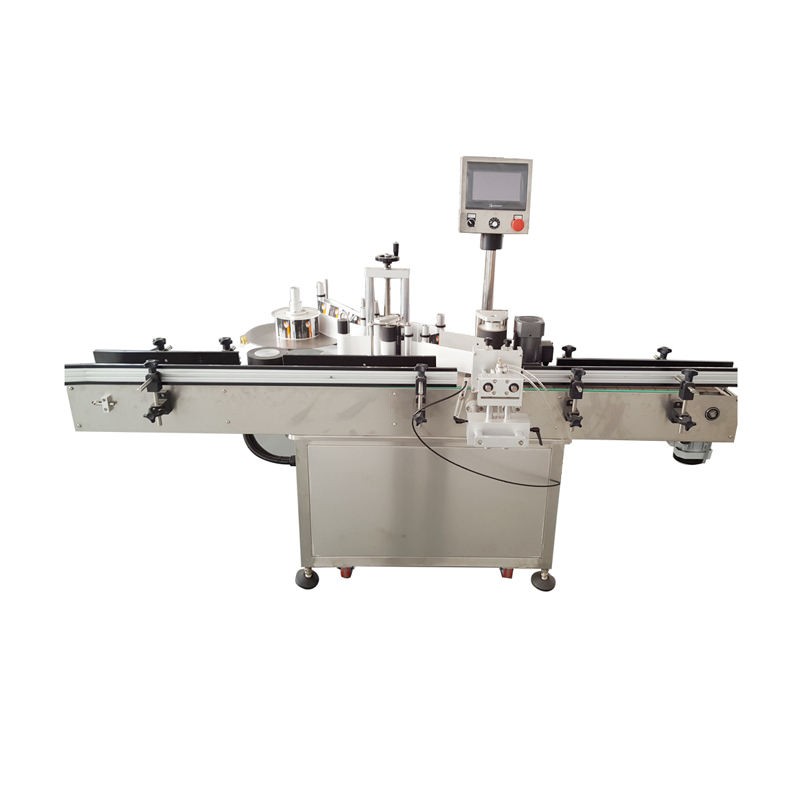

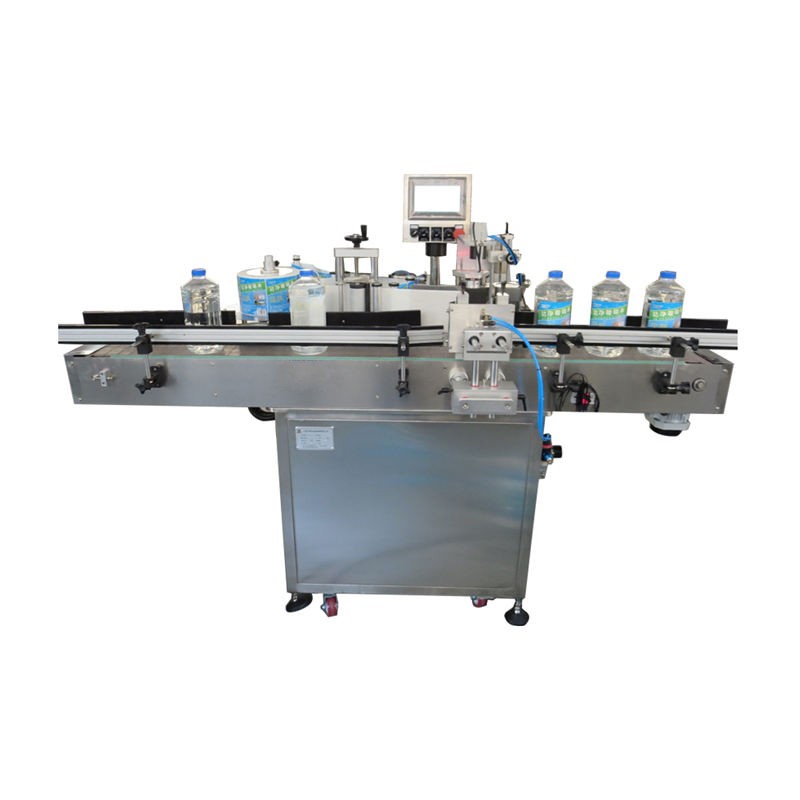

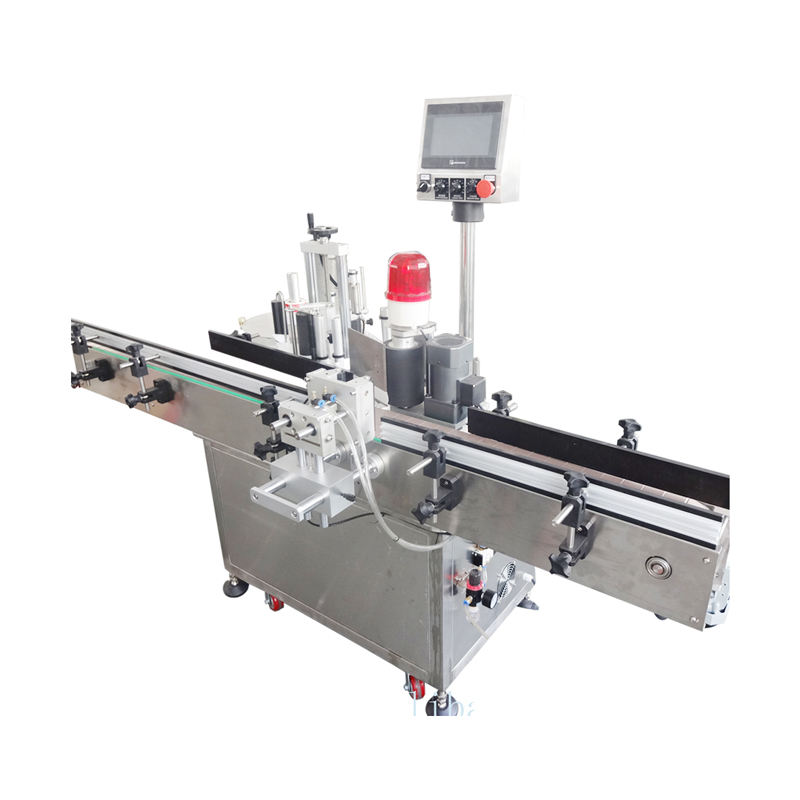

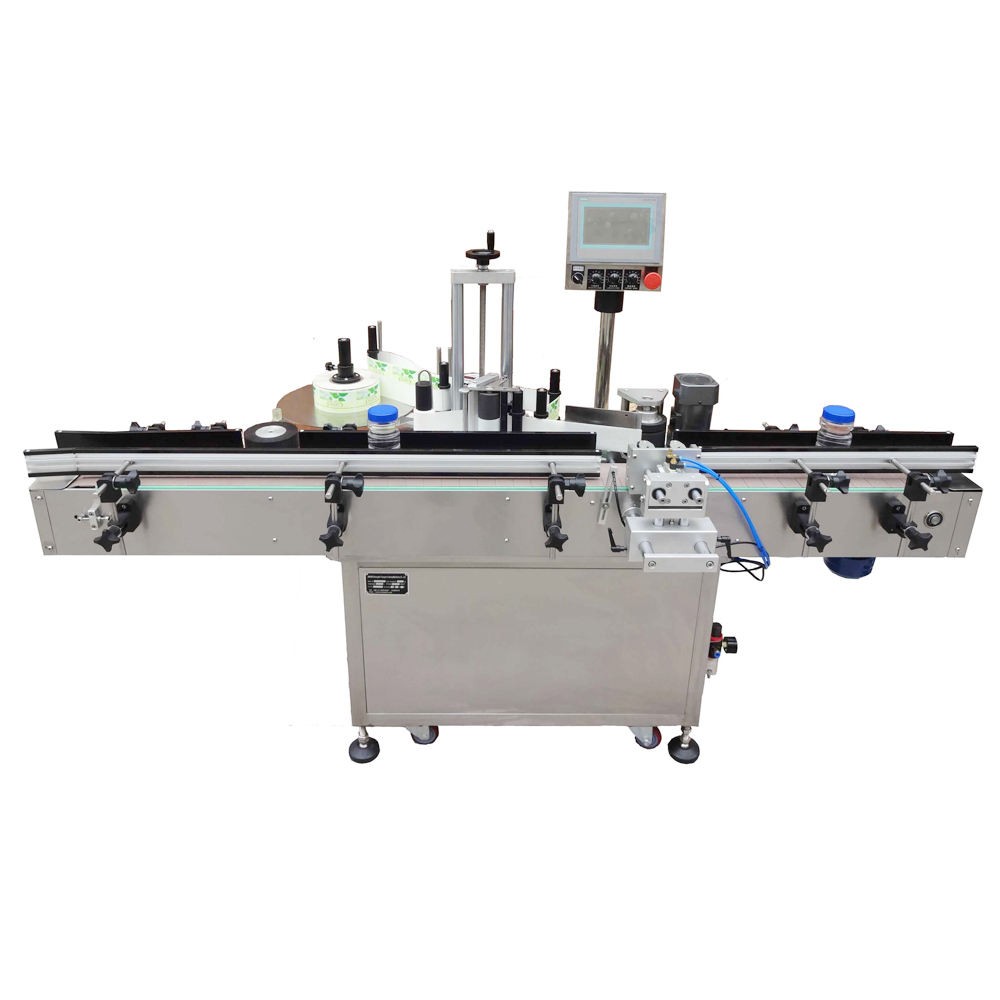

Automatic Round Jar Label Applicator Machine Adhesive Wine Round Bottle Labeling Machine Wrap-around Positioning Labeling Machine
Parameter
| Product Name | Automatic Wrap-around Positioning Labeling Machine |
| Model | KLP-515 |
Power Supply | 110/220V, 50/60Hz, 800W |
Labeling Speed | 0-25meter/min |
Labeling Precision | ±1mm(exduded product and label precision) |
Bottle diameter | 15-100mm (other measurement can be customized) |
Label height | 10-120mm (other measurement can be customized) |
Label reel diameter | inner 76mm;outer 360mm(max) |
Machine Size | L*W*H=2000*1050*1500mm |
Air pressure | 5kg/cm2 |
Features
1. PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminium alloy.
3.The machine has many functions such as guiding,separating,positioning,labeling, counting
4.The labeling position of height can be adjusted.
5.The machine can be used in production line with conveyor belt.
6.The special machine can be customized according to customer requirement.
Application
The KLP-515 is designed for partial/fully wrap-around labeling on round containers. Available for positioning labeling for round bottles with a handle. Available to apply one or two labels at a time on the bottle.
After-sale service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Automatic Round Jar Label Applicator Machine Adhesive Wine Round Bottle Labeling Machine Wrap-around Positioning Labeling Machine
Parameter
| Product Name | Automatic Wrap-around Positioning Labeling Machine |
| Model | KLP-515 |
Power Supply | 110/220V, 50/60Hz, 800W |
Labeling Speed | 0-25meter/min |
Labeling Precision | ±1mm(exduded product and label precision) |
Bottle diameter | 15-100mm (other measurement can be customized) |
Label height | 10-120mm (other measurement can be customized) |
Label reel diameter | inner 76mm;outer 360mm(max) |
Machine Size | L*W*H=2000*1050*1500mm |
Air pressure | 5kg/cm2 |
Features
1. PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminium alloy.
3.The machine has many functions such as guiding,separating,positioning,labeling, counting
4.The labeling position of height can be adjusted.
5.The machine can be used in production line with conveyor belt.
6.The special machine can be customized according to customer requirement.
Application
The KLP-515 is designed for partial/fully wrap-around labeling on round containers. Available for positioning labeling for round bottles with a handle. Available to apply one or two labels at a time on the bottle.
After-sale service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
