KLP-520
KLP
220V 50Hz
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
plastic ,glass or mental jar, can,tin ,bottle
| Quantity: | |
|---|---|

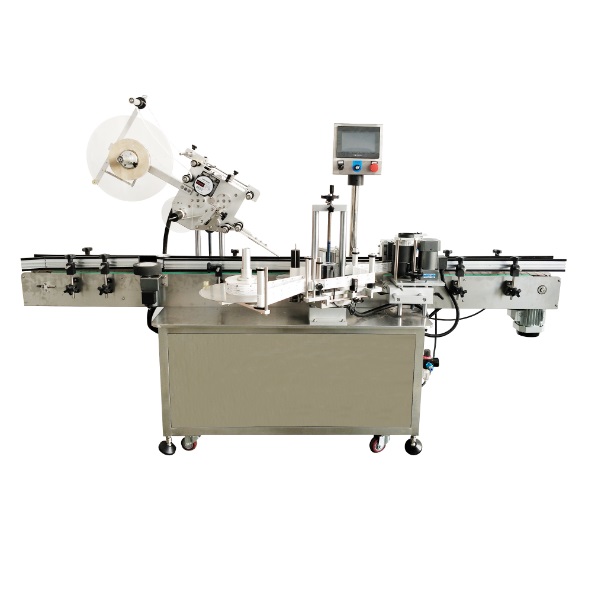

Automatic Top Flat And Round Bottle Labeling Machine Adhesive Labeling Machine Label Applicator
Parameter
Model | KLP-520 |
Power supply | 110/220V, 50/60HZ,800W
|
Labe feeding speed | 0-40 meters/min |
Labeling precision | ±0.5mm (except product and label precision |
Product diameter | 15-120mm(other measurement can be customized) |
Product height | 30-300mm(other measurement can be customized) |
Label height | 10-200mm(other measurement can be customized) |
Label length | 20-350mm(other measurement can be customized) |
Labeling speed | 45-60bottles/min |
Label reel diameter | inner 76mm,outer 360mm(max) |
Label detection type | Photo electrical sensor |
Motor | Stepper motor |
Machine size | L*W*H=2000*1050*1500mm |
Features
1. PLC combined with LCD touch screen panel, the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminum alloy.
3.The machine has many functions such as guiding, separating, labeling, attaching, counting
4. The labeling position of height can be adjusted.
5. The machine can be used in production line with conveyor belt.
6. The special machine can be customized according to customer requirement
Application
This machine is designed for labeling wrap-around and top flat on cylindrical bottles and containers . It can be incorporated with a packing line or operated individually.
Automatic Top Flat And Round Bottle Labeling Machine Adhesive Labeling Machine Label Applicator
Parameter
Model | KLP-520 |
Power supply | 110/220V, 50/60HZ,800W
|
Labe feeding speed | 0-40 meters/min |
Labeling precision | ±0.5mm (except product and label precision |
Product diameter | 15-120mm(other measurement can be customized) |
Product height | 30-300mm(other measurement can be customized) |
Label height | 10-200mm(other measurement can be customized) |
Label length | 20-350mm(other measurement can be customized) |
Labeling speed | 45-60bottles/min |
Label reel diameter | inner 76mm,outer 360mm(max) |
Label detection type | Photo electrical sensor |
Motor | Stepper motor |
Machine size | L*W*H=2000*1050*1500mm |
Features
1. PLC combined with LCD touch screen panel, the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminum alloy.
3.The machine has many functions such as guiding, separating, labeling, attaching, counting
4. The labeling position of height can be adjusted.
5. The machine can be used in production line with conveyor belt.
6. The special machine can be customized according to customer requirement
Application
This machine is designed for labeling wrap-around and top flat on cylindrical bottles and containers . It can be incorporated with a packing line or operated individually.
