KLP-630
KLP
220V 50Hz
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
plastic ,glass or mental jar, can,tin ,bottle
| Quantity: | |
|---|---|

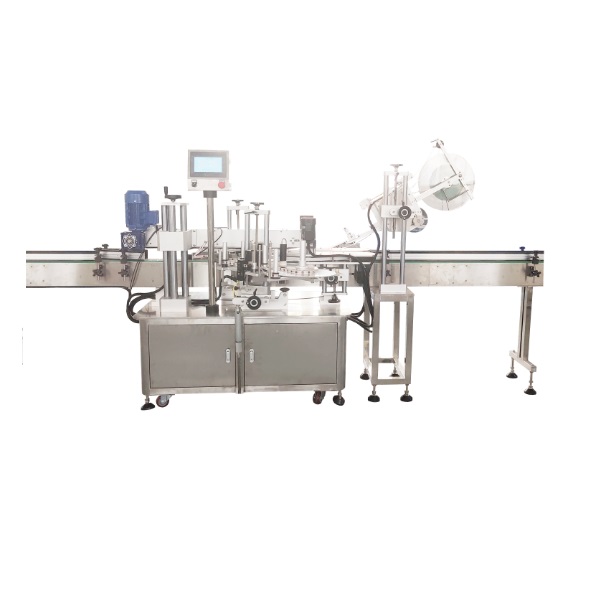

Automatic Top Flat And Two Side Labeling Machine 3 Sides Labeling Machine
Parameter
Model | KLP-630 |
Power supply: | 110/220V, 50/60HZ,1500W
|
Labeling speed | 0-25 meters/min |
Labeling precision | ±1mm (except product and label precision |
Product thickness | 15-100mm(other measurement can be customized) |
Label height | 10-120mm(other measurement can be customized) |
Label reel diameter | inner 76mm,outer 360mm(max)
|
Machine size | 3500*1400*1550mm |
Characteristics
1.PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy.
3.The machine has many functions such as guiding,separating,labeling,attaching,counting.
4.The labeling position of height can be adjusted.
5.The machine can be used in production line with conveyor belt.
6.The special machine can be customized according to customer requirement
Application
This machine is designed for the two-side labeling on flat or oval shape bottles and containers .It can be incoprated with a line or operated individually .
Automatic Top Flat And Two Side Labeling Machine 3 Sides Labeling Machine
Parameter
Model | KLP-630 |
Power supply: | 110/220V, 50/60HZ,1500W
|
Labeling speed | 0-25 meters/min |
Labeling precision | ±1mm (except product and label precision |
Product thickness | 15-100mm(other measurement can be customized) |
Label height | 10-120mm(other measurement can be customized) |
Label reel diameter | inner 76mm,outer 360mm(max)
|
Machine size | 3500*1400*1550mm |
Characteristics
1.PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2.The equipment is complied with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy.
3.The machine has many functions such as guiding,separating,labeling,attaching,counting.
4.The labeling position of height can be adjusted.
5.The machine can be used in production line with conveyor belt.
6.The special machine can be customized according to customer requirement
Application
This machine is designed for the two-side labeling on flat or oval shape bottles and containers .It can be incoprated with a line or operated individually .
