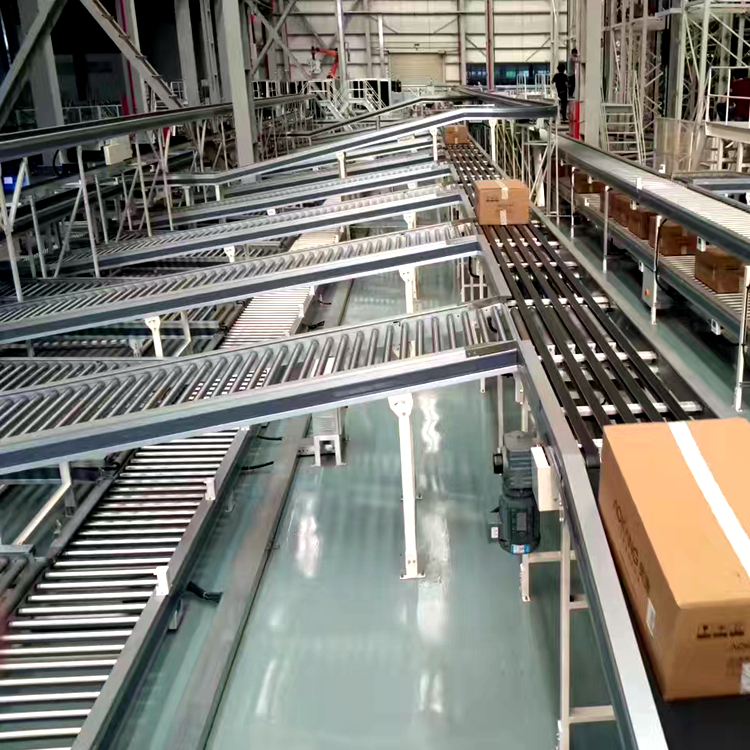

Customization Powered Roller Conveyor For Merge Or Diverter In Logistic Conveyor System
A new type of diverting and converging roller conveyor provides a reversing roller for a vertical diverting conveyor, including: a reversing roller body, a sleeve, a shaft and a belt, the sleeve is matched with the belt, and the shaft is arranged between the sleeve and the shaft. For the bearing that plays a rotating role, the main body of the redirecting drum is provided with a positioning groove at a certain angle with the main body of the redirecting drum. The positioning groove is closely matched with the belt, and the angle of the positioning groove is 35°-45°.
After the technical solution of the present utility model, the rollers of the diverting rollers are processed with positioning grooves, so that the belt and the positioning grooves cooperate to avoid the sagging of the belt during the operation of the machine. At the same time, the positioning grooves have a certain angle and drive parts The bearings are positioned between the shafts and the lock nut, which is convenient for maintenance personnel to perform daily maintenance on the diverter roller and the belt. Therefore, the diverter roller can ensure the long-term operation of the vertical diverter, improve the speed of diversion and sorting, and facilitate work at the same time. Routine maintenance of diverting rolls by personnel.
Structural form of shunt and confluence roller conveyor: according to the driving mode, it can be divided into power roller conveyor and non-power roller conveyor, according to the layout form, it can be divided into horizontal conveying roller conveyor, inclined conveying roller conveyor, turning roller conveyor, Telescopic roller conveyors, etc., can also be specially designed by customers to meet the requirements of various customers.
