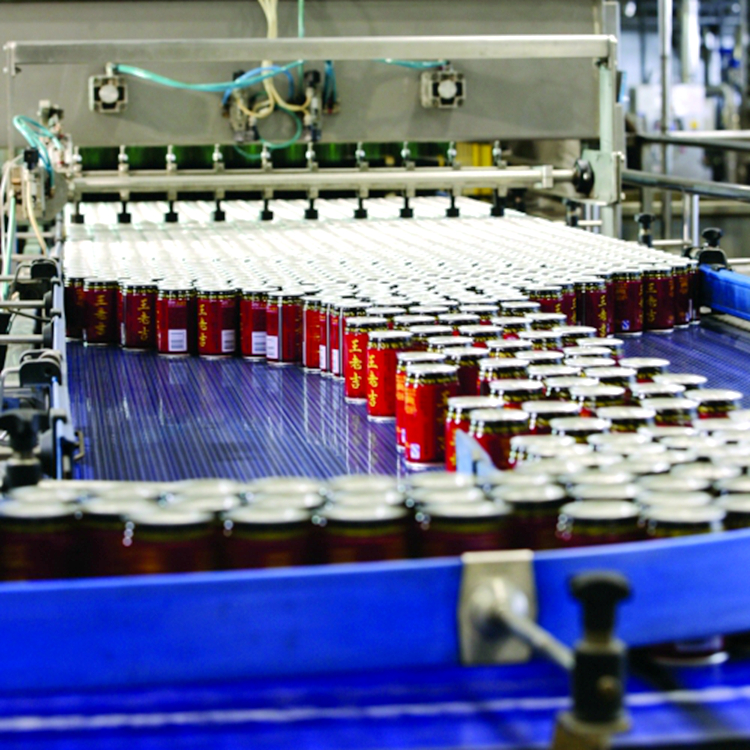

Flat Top Chain Plate Conveyor Line for Mineral Water Bottle Beverage Chain Plate Conveyor Line
Chain conveyors are widely used in automatic conveying, distribution, and in-line conveying of subsequent packaging of food, canned food, edible oil, medicines, beverages, cosmetics and washing products, paper products, condiments, dairy and tobacco, etc. The chain plate conveyor belt can meet the requirements of single-line transportation of beverage labeling, filling, cleaning and other equipment, and meet the requirements of large-scale feeding of sterilizers, bottle storage tables, and bottle coolers. The head of the two chain plate conveyors can be connected The tail is made into an overlapping mixed chain, so that the bottle (can) body is in a dynamic transition state, so that no bottle remains on the conveying line, which can meet the pressure and pressure-free conveying of empty and solid bottles.
Chain plate specifications:
The width of the straight chain plate is 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, 304.8; unit: mm
The width of the turning chain plate is 82.5, 114.3, 152.4, 190.5, 304.8. Unit: mm
Chain plate material: carbon steel, stainless steel, plastic steel, according to the needs of the product, chain plates of different widths and shapes can be selected to complete the requirements of plane conveying, plane turning, lifting and lowering.
Main features of beverage chain conveyor line:
1. The conveying surface of the chain plate conveyor belt is flat and smooth, the friction force is small, and the transition of materials between the conveying lines is smooth.
2. The conveying speed is accurate and stable, which can ensure precise synchronous conveying.
3. The chain plate conveyor belt can generally be directly washed with water or directly immersed in water. The equipment is easy to clean and can meet the hygiene requirements of the food and beverage industry.
4. The equipment layout is flexible. Horizontal, inclined and curved conveying can be done on one conveyor line.
5. The equipment has a simple structure and is easy to maintain.
6. The chain plates are made of stainless steel and engineering plastics, with a wide variety of specifications, which can be selected according to the conveying materials and process requirements, and can meet the different needs of all walks of life
Flat Top Chain Plate Conveyor Line for Mineral Water Bottle Beverage Chain Plate Conveyor Line
Chain conveyors are widely used in automatic conveying, distribution, and in-line conveying of subsequent packaging of food, canned food, edible oil, medicines, beverages, cosmetics and washing products, paper products, condiments, dairy and tobacco, etc. The chain plate conveyor belt can meet the requirements of single-line transportation of beverage labeling, filling, cleaning and other equipment, and meet the requirements of large-scale feeding of sterilizers, bottle storage tables, and bottle coolers. The head of the two chain plate conveyors can be connected The tail is made into an overlapping mixed chain, so that the bottle (can) body is in a dynamic transition state, so that no bottle remains on the conveying line, which can meet the pressure and pressure-free conveying of empty and solid bottles.
Chain plate specifications:
The width of the straight chain plate is 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, 304.8; unit: mm
The width of the turning chain plate is 82.5, 114.3, 152.4, 190.5, 304.8. Unit: mm
Chain plate material: carbon steel, stainless steel, plastic steel, according to the needs of the product, chain plates of different widths and shapes can be selected to complete the requirements of plane conveying, plane turning, lifting and lowering.
Main features of beverage chain conveyor line:
1. The conveying surface of the chain plate conveyor belt is flat and smooth, the friction force is small, and the transition of materials between the conveying lines is smooth.
2. The conveying speed is accurate and stable, which can ensure precise synchronous conveying.
3. The chain plate conveyor belt can generally be directly washed with water or directly immersed in water. The equipment is easy to clean and can meet the hygiene requirements of the food and beverage industry.
4. The equipment layout is flexible. Horizontal, inclined and curved conveying can be done on one conveyor line.
5. The equipment has a simple structure and is easy to maintain.
6. The chain plates are made of stainless steel and engineering plastics, with a wide variety of specifications, which can be selected according to the conveying materials and process requirements, and can meet the different needs of all walks of life
