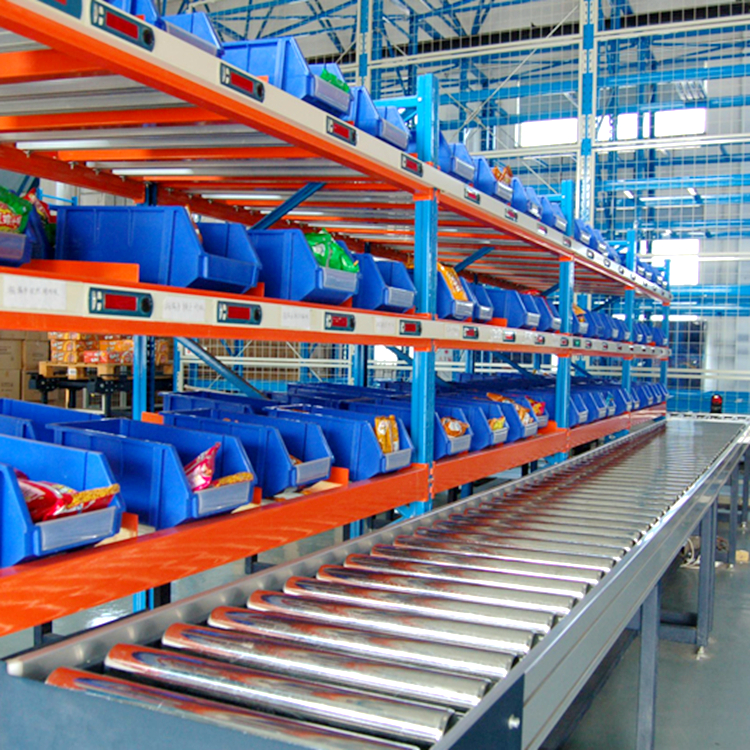

Flexible Unpowered Roller Conveyor for Express Logistics Sorting
Unpowered roller conveyor is also called unpowered roller table. There are two types of unpowered long roller table and unpowered short roller table. The surface shapes of the rollers of the long roller table are cylindrical, conical and curved, and the cylindrical long roller table is the most widely used. The curved section of the roller table adopts conical rollers or double rows of cylindrical rollers, which can make the articles turn. The short roller table can shorten the distance between the rollers, and the self-weight is lighter.
The unpowered roller conveyor is generally inclined slightly downward. When the item is heavy and the line is long, in order to save effort when pushing the item, the inclination can be taken as 1~1.5%. If you want to make the item slide, the slope can be increased to 2~3%. There are many factors affecting the size of the self-slip slope, and most of them are used to determine the appropriate angle. When the length of the line is less than 10 meters and the item is lighter than 200 kg, it can be arranged as a horizontal line. The self-sliding roller table is not easy to control the sliding speed of the items, so the length is generally not large.
The width of the unpowered roller conveyor is 100~150 mm larger than the width of the item. The minimum curvature radius of the curve section is 3~4 times the width of the roller table. The distance between the rollers is 1/3~1/4 of the length of the conveyed item, when the stability of the item conveying is required to be high. The spacing can be 1/4~1/5 of the length of the conveyed item. The diameter of the rollers is determined by the size of the load.
Unpowered roller conveying equipment is mainly used for conveying all kinds of boxes, bags, pallets and packaged goods. Some bulk materials and small items need to be placed in pallets or turnover boxes for transfer and transportation. In addition, unpowered roller equipment also It can transport materials with a large load on the punching cycle or a single piece of heavy weight, and can use the accumulation and release roller to realize the accumulation and transportation. The unpowered roller also has the characteristics of simple structure and high reliability.
Flexible Unpowered Roller Conveyor for Express Logistics Sorting
Unpowered roller conveyor is also called unpowered roller table. There are two types of unpowered long roller table and unpowered short roller table. The surface shapes of the rollers of the long roller table are cylindrical, conical and curved, and the cylindrical long roller table is the most widely used. The curved section of the roller table adopts conical rollers or double rows of cylindrical rollers, which can make the articles turn. The short roller table can shorten the distance between the rollers, and the self-weight is lighter.
The unpowered roller conveyor is generally inclined slightly downward. When the item is heavy and the line is long, in order to save effort when pushing the item, the inclination can be taken as 1~1.5%. If you want to make the item slide, the slope can be increased to 2~3%. There are many factors affecting the size of the self-slip slope, and most of them are used to determine the appropriate angle. When the length of the line is less than 10 meters and the item is lighter than 200 kg, it can be arranged as a horizontal line. The self-sliding roller table is not easy to control the sliding speed of the items, so the length is generally not large.
The width of the unpowered roller conveyor is 100~150 mm larger than the width of the item. The minimum curvature radius of the curve section is 3~4 times the width of the roller table. The distance between the rollers is 1/3~1/4 of the length of the conveyed item, when the stability of the item conveying is required to be high. The spacing can be 1/4~1/5 of the length of the conveyed item. The diameter of the rollers is determined by the size of the load.
Unpowered roller conveying equipment is mainly used for conveying all kinds of boxes, bags, pallets and packaged goods. Some bulk materials and small items need to be placed in pallets or turnover boxes for transfer and transportation. In addition, unpowered roller equipment also It can transport materials with a large load on the punching cycle or a single piece of heavy weight, and can use the accumulation and release roller to realize the accumulation and transportation. The unpowered roller also has the characteristics of simple structure and high reliability.
