KLP-SW-480
KLP
800
3N 380V 50Hz
wrapping cosmetic cigarette condoms cerfume box playing cards with cellophane film.
plastic film ,bopp film,transparent film ,pvc
| Quantity: | |
|---|---|

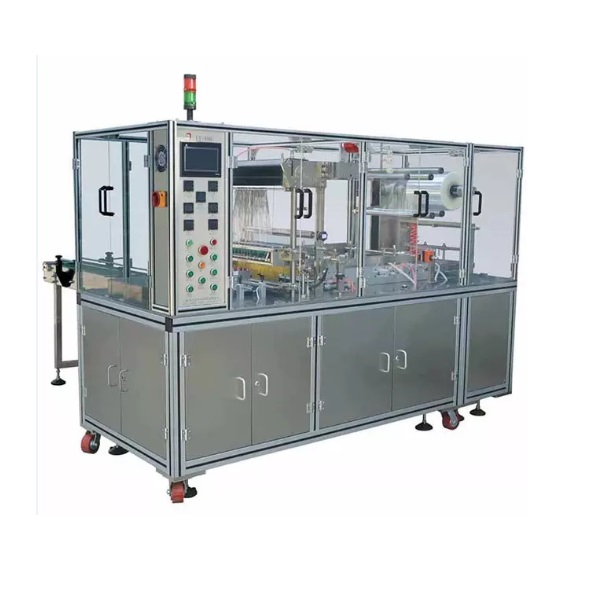

Full Automatic 2 Layers Cigarette Medicine Big Box Cellophane Overwrapping Packing Machine Box Overwrapper Overwrap Machine
Parameter
| Model | KLP-SW-480 |
| Packing speed | 10-45 boxes/min(the speed is according to the product size) |
| Total power | 8.5kw |
| Voltage | 3N 380v 50hz |
| Packing size | L(55-360mm)W(45-240mm)L(20-100mm)Note:all the package size can not reach both the maximum or minimum values .The width of the film should not exceed 450mm and the film length can not exceed 650mm |
| Conveyor size | LxWxH=1600 x 270 x 770mm |
| Machine size | LxWxH=2400 x 1000 x 1500mm |
| Main air pressure | 0.4-0.5mpa |
| Machine weight | 800kg |
Main characteristic

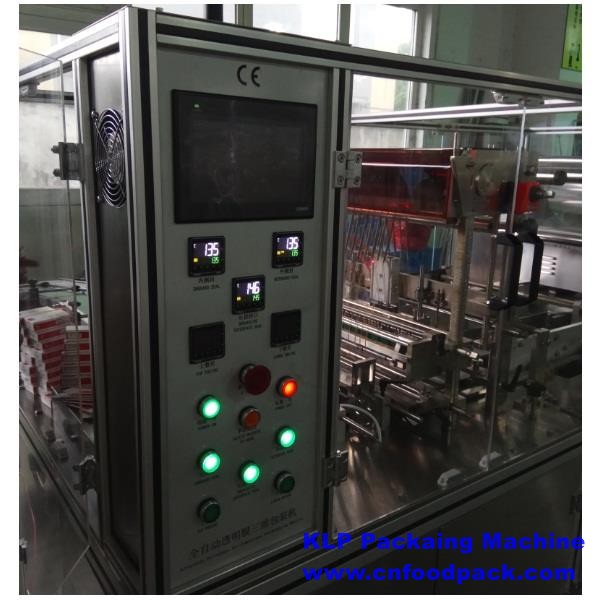

This cigarette box packing machine is controlled by PLC interface, which is drived by cylinder, and the film falling system is controlled by servo motor. The dimension of film could be adjusted freely. It has the features of stable and reliable operation, firm sealing. The tear tape has the U-type easy tear gap. The machine is made up of imported alloy and closed protection shell. The appearance is very beautiful and attractive, and it is very easy to be operated.
Usage
This cigarette box packing machine is suitable for single automatic packaging of various carton boxes products in drug, health product, food, cosmetics, stationery and audio & video products such as the packaging of single box and bundled box of drug, pocker, VCD, DVD, CD boxes, tape, cigarette, napkin paper, chewing gum, eraser etc.
Full Automatic 2 Layers Cigarette Medicine Big Box Cellophane Overwrapping Packing Machine Box Overwrapper Overwrap Machine
Parameter
| Model | KLP-SW-480 |
| Packing speed | 10-45 boxes/min(the speed is according to the product size) |
| Total power | 8.5kw |
| Voltage | 3N 380v 50hz |
| Packing size | L(55-360mm)W(45-240mm)L(20-100mm)Note:all the package size can not reach both the maximum or minimum values .The width of the film should not exceed 450mm and the film length can not exceed 650mm |
| Conveyor size | LxWxH=1600 x 270 x 770mm |
| Machine size | LxWxH=2400 x 1000 x 1500mm |
| Main air pressure | 0.4-0.5mpa |
| Machine weight | 800kg |
Main characteristic
This cigarette box packing machine is controlled by PLC interface, which is drived by cylinder, and the film falling system is controlled by servo motor. The dimension of film could be adjusted freely. It has the features of stable and reliable operation, firm sealing. The tear tape has the U-type easy tear gap. The machine is made up of imported alloy and closed protection shell. The appearance is very beautiful and attractive, and it is very easy to be operated.
Usage
This cigarette box packing machine is suitable for single automatic packaging of various carton boxes products in drug, health product, food, cosmetics, stationery and audio & video products such as the packaging of single box and bundled box of drug, pocker, VCD, DVD, CD boxes, tape, cigarette, napkin paper, chewing gum, eraser etc.
