KLP-250B
KLP
410
220V 50Hz
Food, Commodity, Medical, Chemical, Machinery & Hardware
plastic film like OPP/CPP PT/PE KOP/CPP ALU-FOIL
| Quantity: | |
|---|---|

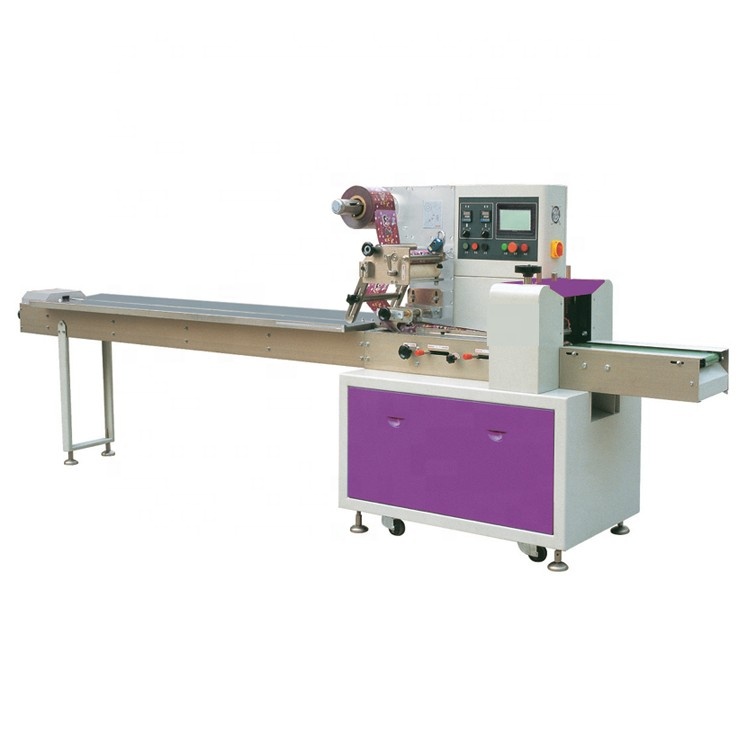

Fully Automatic Horizontal Bread Cake Buns Flow Pack Packing Machine Ice Cream Lolly Popsicle Packaging Machine
Parameter
Model | KLP-250B | KLP-250D | KLP-250E | KLP-250S |
Film width | Max 250mm | Max 180mm | ||
Bag length | 65-190mm 120-280mm | 90-220mm | 50-115mm | 45-90mm |
Bag width | 30-110mm | 30-80mm | ||
Product height | Max 40mm | Max 55mm | Max 35mm | |
Film roll diameter | Max 320mm | |||
Packing speed | 40-230 bags/min | 60-330 bags/min | ||
Power | 220v 50Hz/60Hz, 2.4KVA | |||
Machine size | L 3770*W 670* H 1450mm | |||
Weight | 410 kgs | |||
1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3) Positioned stop function ,without sticking knife or wasting film.
4) Simple driving system,reliable working ,convenient maintenance.
5) All control is realized through software ,easy for function adjusting and technical upgrade .
Aplication
Suitable for packing many kinds of regular products. Food and nonfood products, such as
biscuit, cookies, bread, soap, noodles, popsicle, card, soap, hand made soap etc.
Fully Automatic Horizontal Bread Cake Buns Flow Pack Packing Machine Ice Cream Lolly Popsicle Packaging Machine
Parameter
Model | KLP-250B | KLP-250D | KLP-250E | KLP-250S |
Film width | Max 250mm | Max 180mm | ||
Bag length | 65-190mm 120-280mm | 90-220mm | 50-115mm | 45-90mm |
Bag width | 30-110mm | 30-80mm | ||
Product height | Max 40mm | Max 55mm | Max 35mm | |
Film roll diameter | Max 320mm | |||
Packing speed | 40-230 bags/min | 60-330 bags/min | ||
Power | 220v 50Hz/60Hz, 2.4KVA | |||
Machine size | L 3770*W 670* H 1450mm | |||
Weight | 410 kgs | |||
1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3) Positioned stop function ,without sticking knife or wasting film.
4) Simple driving system,reliable working ,convenient maintenance.
5) All control is realized through software ,easy for function adjusting and technical upgrade .
Aplication
Suitable for packing many kinds of regular products. Food and nonfood products, such as
biscuit, cookies, bread, soap, noodles, popsicle, card, soap, hand made soap etc.
