KLP--1182-3D
220V 50-60Hz
USB wire , electric wire , cable , tube
| Quantity: | |
|---|---|

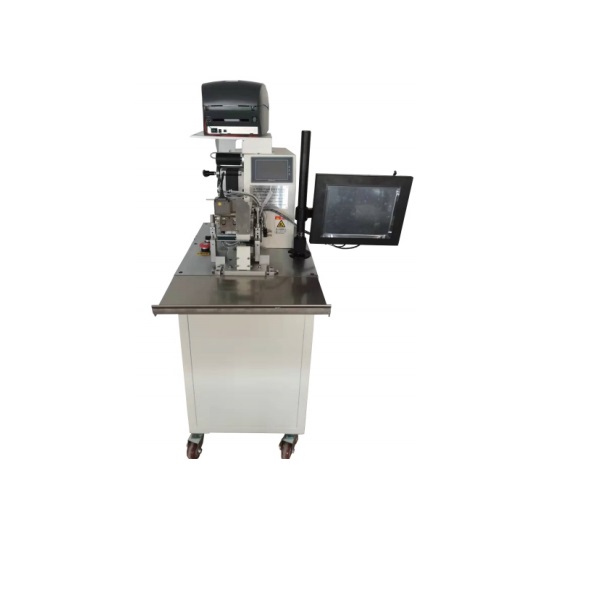

Online Real-time Printing Labeling Machine Cable Label Wrap Around Machine Wire Labeling Machine
Technical parameters
| Model | KLP--1182-3D |
| power supply | 220V/50HZ |
| Labeling accuracy | ±0.2mm (excluding product and label errors) |
| Labeling speed | 1000-1800pcs/H ( depends on label size and manual operation speed)) |
| Applicable product | all kinds of round wire, flat wire, water pipe and other products |
| Applicable product size | wire diameter 1-30mm (others can be customized) |
| Applicable label size | length: 20mm ~ 100mm (others can be customized), width : 5mm~45mm |
| Machine size | about 655mm×680mm×1200mm (length×width×height) |
| Label roll diameter | Label roll outer diameter: 240mm, label coupon inner diameter: 76mm |
| Machine weight | 86 kgs |
| Air pressure | 0.4-0.6Mpa |
This labeling machine is mainly a labeling equipment that rolls self-adhesive labels 360 degrees on the wire body.
It printing and labeling at the same time. It is an intelligent automation equipment newly developed for the wire and cable processing industry. It is mainly used for barcode labels, warning labels, instruction labels, etc. to be pasted on wires, laptop power cords, desktop computer plug cords, printer plug cords, digital camera charging cords, camera power cords and other peripheral wires for mobile phones and computers.
Features：
1.Precise positioning of servo motor;
2.SICK label electric eyes fast sensing label gap to complete labeling complete recognition;
3.Reasonable mechanical structure design ensures smooth and stable labeling; Humanized perfect structure design;
4.Easy to use, can be adjusted in a wide range, to achieve different specifications of wire harness products on the fold labeling;
5.Adjust the machine without twisting the screw, directly input the label size, line diameter size on the display screen;
6.Double label simultaneous attaching machine applies to one line needs to attach two labels at the same time, one machine saves more labor;
7.Improve production efficiency, solve the advantages of slow manual labeling, insufficient accuracy, personnel change and high labor cost;
8.CNC adjustment machine stable performance machine display manual convenient factory operators at any time to read.
Scope of application:
1: The automatic wire labeling machine is suitable for round wires, double-spliced and multi-spliced wires, flat wires, twisted wires, and loose wires, sharing one machine for automatic labeling, and pasting of wire and cable labels (barcode labels, warning labels, instruction labels, etc. ), just put the wire and cable on the label, and the label will be automatically applied by stepping on the pedal machine without manual support.
2: Round wire, flat wire, plugs at both ends, etc. can be used (the wire does not need to be rotated, and the inner wire of the wire will not be damaged). This not only changes the traditional manual labeling method, improves the efficiency of labeling, improves the disadvantages of uneven size and wrinkles in manual labeling, but also saves 3-5 labors. Improve production efficiency, solve the advantages of slow manual labeling, insufficient accuracy, personnel changes and high labor costs.
3: Optional printing function, real-time printing, online printing, printing and labeling one by one, printing and labeling in one step.
FAQ
Q1: What is your company's main products?
Chengdu KLP (Packaging) Machinery CO., Ltd. mainly offer Semi Automatic Filling Machine ,Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines etc.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
