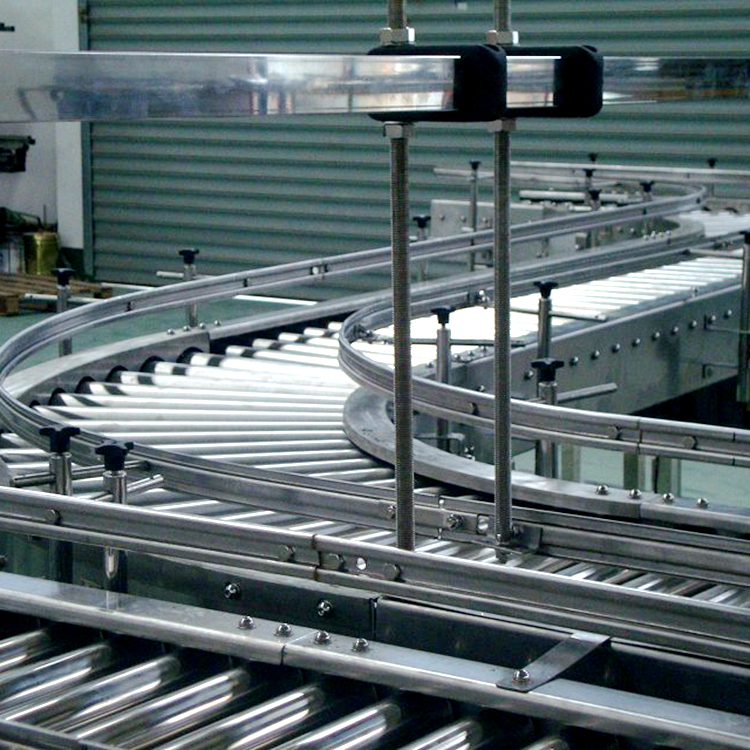

Power Drum Conveyor Automatic Power Drum Production Line Unloading Roller Machine Power Roller Conveyor
The power roller conveyor is easy to connect and transition in the production line. Multiple roller conveyor lines and other conveying equipment can be used to form a complex logistics conveying system to complete the multi-angle conveying process needs. The accumulation and release rollers can also be used to realize the accumulation and transportation of materials, so the roller conveyor has a simple structure, high reliability, and convenient use and maintenance.
Power roller conveyor is an important type of roller conveyor. Often used for horizontal or upward slightly inclined transmission lines. The driving device transmits the power to the drum to make it rotate, and the articles are conveyed by the frictional force between the surface of the roller and the surface of the conveyed articles. According to the drive mode, there are individual drives and group drives. In the former, each roller is equipped with a separate drive for easy disassembly. The latter is a group of several rollers driven by a drive to reduce equipment cost. The transmission modes of group drive include gear drive, chain drive and belt drive. Power roller conveyors are generally driven by AC motors, and can also be driven by two-speed motors and hydraulic motors as needed.
The power roller conveyor is suitable for conveying items with a flat bottom, and is mainly composed of a drive roller, side plates, outriggers, and drives. The equipment has the characteristics of large conveying capacity, fast speed, light operation, and can realize multi-variety collinear diversion conveying.
The frame material of the power roller conveyor is generally made of stainless steel, aluminum profiles, and carbon steel spraying; the power modes of the roller transmission equipment include electric roller drive, gear motor drive, etc.; Friction drive belt, O-belt, timing belt, etc.; speed regulation methods include stepless speed change, frequency conversion speed regulation, etc.
Power roller conveyor related parameters
●Dimensions and specifications: The inner width of the roller conveyor is specified by the customer and can be made according to the customer's needs. The taper of the turning drum will be designed according to the weight, overall dimensions, line speed, etc. of the conveyed object. The standard turning inner radius of the turning rolling line is 300, 600, 900, 1200 mm, etc., and other special specifications can also be adopted according to customer needs.
●Rack material: carbon steel spray plastic, stainless steel, aluminum profiles.
●Power mode: geared motor drive, electric drum drive and other forms.
● Transmission mode: single sprocket, double sprocket, O-belt, plane friction transmission belt, timing belt, etc.
●Speed regulation mode: frequency conversion speed regulation, stepless speed change, etc.
● Structural form: In terms of driving form, it is divided into power, electric drum, etc., according to the layout form, it is divided into horizontal conveying, inclined conveying, turning conveying, screw conveying, etc.
