KLP-1182-3DY
220V 50-60Hz
USB wire , electric wire , cable , tube
| Quantity: | |
|---|---|

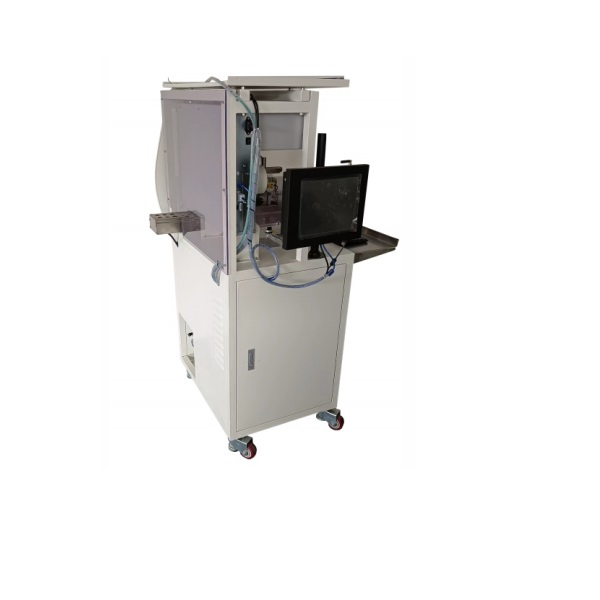

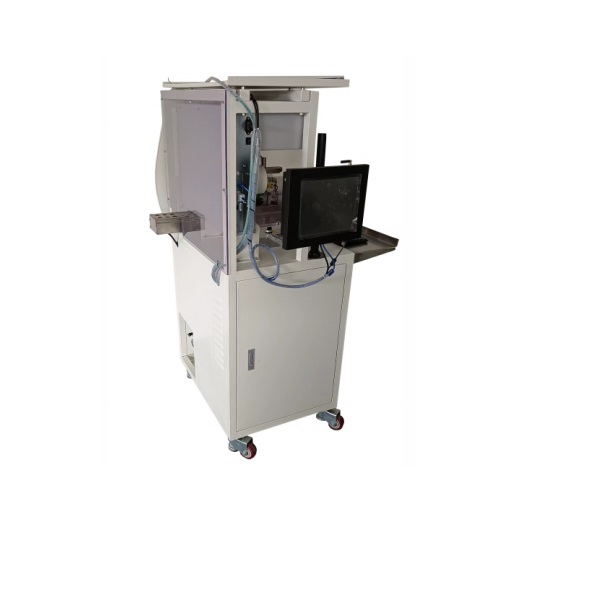

Real-time Wire Flag Labeling Machine Cable Stick Wrapping Machine
Technical parameters
| Model | KLP-1182-3DY |
| power supply | 220V/50HZ |
| Labeling accuracy | ±0.2mm (excluding product and label errors) |
| Labeling speed | 1000-1800pcs/H ( depends on label size and manual operation speed)) |
| Applicable product | all kinds of round wire, flat wire, water pipe and other products |
| Applicable product size | wire diameter 1-30mm (others can be customized) |
| Applicable label size | length: 20mm ~ 100mm (others can be customized), width : 5mm~45mm |
| Machine size | about 655mm×680mm×1100mm (length×width×height) |
| Label roll diameter | Label roll outer diameter: 240mm, label coupon inner diameter: 76mm |
| Machine weight | 86 kgs |
| Air pressure | 0.4-0.6Mpa |
Features：
1.Precise positioning of servo motor;
2.SICK label electric eyes fast sensing label gap to complete labeling complete recognition;
3.Reasonable mechanical structure design ensures smooth and stable labeling; Humanized perfect structure design;
4.Easy to use, can be adjusted in a wide range, to achieve different specifications of wire harness products coil labeling; 5.Adjust the machine without twisting the screw, directly input the label size, line diameter size on the display screen;
6.Print a sticker sticker, one to one real-time print label, for serial number products corresponding to the bar code, the performance is quite stable;
7.Improve production efficiency, solve the advantages of slow manual labeling, insufficient accuracy, personnel change and high labor cost;
8.The line does not move, the label rotates, does not hurt the line, the long line flat line double splice line scattered line can be automatically labeled, the replacement of the wire diameter can be easily solved by adjusting the number of labeling rolls. Numerical control adjusting machine.
Application:
* Applicable industries: electronics, wire, electrical appliances, electromechanical,
* Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
* Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc.;
* Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable cable labeling,tracheal labeling, warning label labeling machine, etc.
FAQ
Q1: What is your company's main products?
Chengdu KLP (Packaging) Machinery CO., Ltd. mainly offer Semi Automatic Filling Machine ,Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines etc.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
