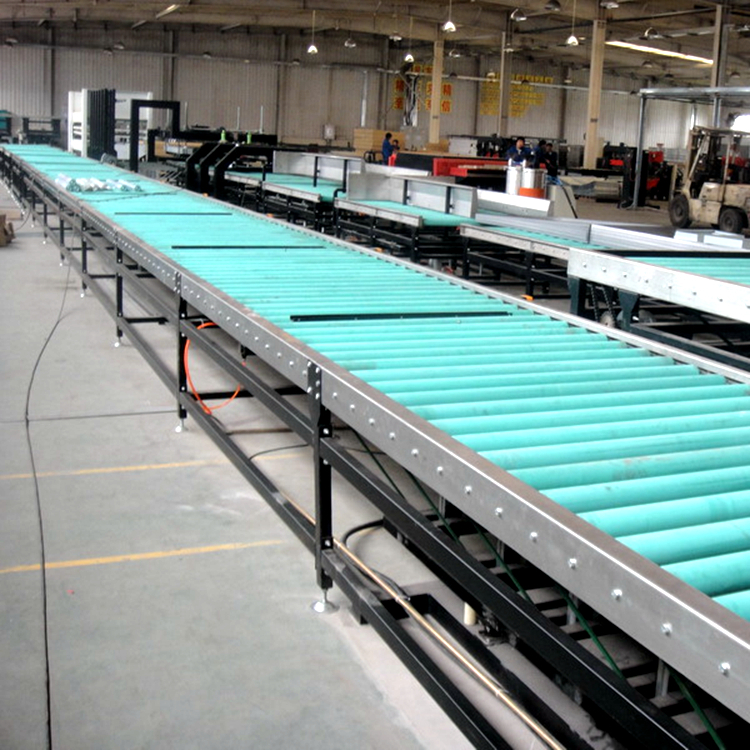

Rubberized Roller Conveyor Conveyor Line Powered Flexible Expandable Roller Conveyor
The rubber-coated roller conveyor is an important component and part of the conveying system. The lagging of the roller can effectively improve the running condition of the conveying system, protect the metal roller from being worn, prevent the slippage of the conveyor belt, and the friction of the bracket, so that the roller and the conveyed item run synchronously. The rubber-coated roller conveyor has the advantages of simple structure, high reliability and convenient use and maintenance. The roller conveyor is suitable for conveying items with a flat bottom, and is mainly composed of a driving roller, a frame, a bracket, and a driving part. It has the characteristics of large conveying capacity, fast speed, light operation, and can realize multi-variety collinear and diverted conveying.
Basic information of lagging rollers
1. Selection of drum diameter: 25mm, 32mm, 38mm, 42mm, 50mm, 57mm, 60mm, 76mm, 80mm, 89mm.
2. Selection of roller material: carbon steel galvanized, carbon steel chrome plated, carbon steel lagging, aluminum alloy, stainless steel, ABS, etc.
Selection of roller types: unpowered rollers, single chain rollers, double chain rollers, "O" belt rollers, tapered rollers, grooved rollers.
3. Roller fixing method: spring press-in type, internal tooth shaft type, full flat tenon type, through shaft pin hole type.
4. The lagging material can be natural rubber, nitrile rubber, neoprene, EPDM, polyurethane, etc.
5. Overmolding and vulcanization bonding methods: cold vulcanization bonding method and hot vulcanization bonding method.
Structural form of rubber-coated roller conveyor: According to the driving mode, it can be divided into power roller line and non-power roller line, and according to the layout form, it can be divided into horizontal conveying roller line, inclined conveying roller line and turning roller line.
Rubberized Roller Conveyor Conveyor Line Powered Flexible Expandable Roller Conveyor
The rubber-coated roller conveyor is an important component and part of the conveying system. The lagging of the roller can effectively improve the running condition of the conveying system, protect the metal roller from being worn, prevent the slippage of the conveyor belt, and the friction of the bracket, so that the roller and the conveyed item run synchronously. The rubber-coated roller conveyor has the advantages of simple structure, high reliability and convenient use and maintenance. The roller conveyor is suitable for conveying items with a flat bottom, and is mainly composed of a driving roller, a frame, a bracket, and a driving part. It has the characteristics of large conveying capacity, fast speed, light operation, and can realize multi-variety collinear and diverted conveying.
Basic information of lagging rollers
1. Selection of drum diameter: 25mm, 32mm, 38mm, 42mm, 50mm, 57mm, 60mm, 76mm, 80mm, 89mm.
2. Selection of roller material: carbon steel galvanized, carbon steel chrome plated, carbon steel lagging, aluminum alloy, stainless steel, ABS, etc.
Selection of roller types: unpowered rollers, single chain rollers, double chain rollers, "O" belt rollers, tapered rollers, grooved rollers.
3. Roller fixing method: spring press-in type, internal tooth shaft type, full flat tenon type, through shaft pin hole type.
4. The lagging material can be natural rubber, nitrile rubber, neoprene, EPDM, polyurethane, etc.
5. Overmolding and vulcanization bonding methods: cold vulcanization bonding method and hot vulcanization bonding method.
Structural form of rubber-coated roller conveyor: According to the driving mode, it can be divided into power roller line and non-power roller line, and according to the layout form, it can be divided into horizontal conveying roller line, inclined conveying roller line and turning roller line.
