KLP-PF-01A
KLP
180
220V /380V
filling for glucose powder, flour, starch, small crystals, small particles
plastic bag,stand up pouch bag ,can,tin ,bottle
| Quantity: | |
|---|---|

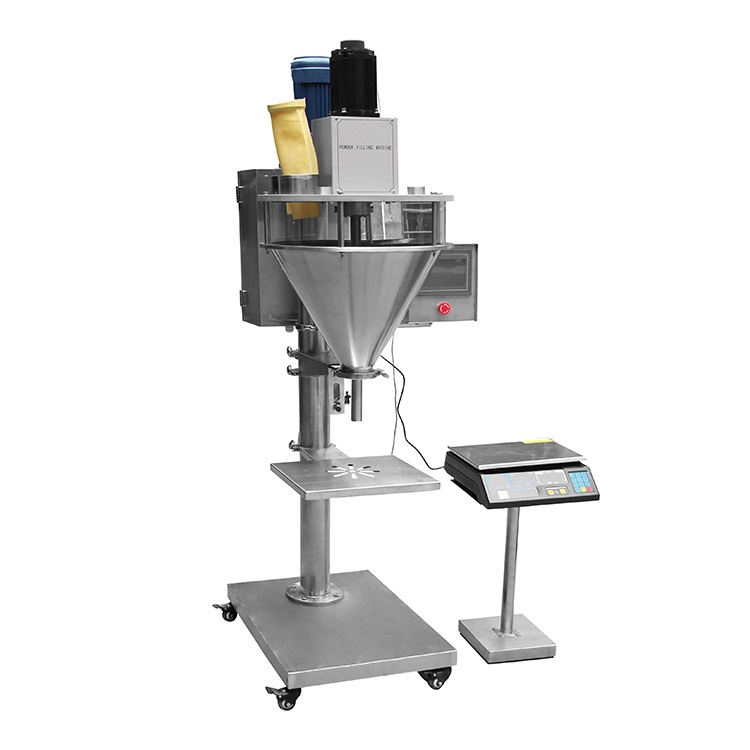

Semi Automatic Vertical Filler Machine Dry Protein Spice Coffee Milk Auger Powder Bag Dosing Filling Packing Machine
Parameter
| Filling range | 2g-5kg |
| Filling speed | 1200-3500 bags/h |
| Accurancy | ±1% |
| Power supply | AC 380v or 220v |
| Power | 1.5Kw |
| Weight | 180kg |
| Machine size | 710*810*1900mm |
Intruduction
This machine made of stainless steel, fully meet the requirements of food and medicine. Gear reducer motor for stirring motor and servo motor for filling motor Against different kinds of packing material, can adopt different mixing mechanism or install the dust removal device, to avoid some special materials leakage or Dust phenomenon.
Characteristic
1. Transparent hopper, material operation is at a glance;
2. Hopper can open, cleaning is more convenient and fast.
3. It’s easy to adjust the position of the mixer, so that the packaging accuracy to achieve the best, easy to maintain agitator, metering screw, long axis and other parts.
4.. High-precision machining means to make the motor, long axis, hopper metering screw, cup to achieve a high degree of concentricity, so that can improve operating efficiency and reduce the wear of the metering screw, and greatly reduces the metering screw disoriented failure.after machine is moving, cleaning and long time stirring.
5. Calculate cup and the silo adopt quick-connect clamp connection, easy touse
6.PLC control panel , Chinese and English language (can also custom made language according to customer's needs)
7.The part which touch the food all made by 304 stainless steel
8.Filling motor is stepper motor or servo motor.
9.The filling based on timer or sensor. The foot switch is optional.
Application
This machine is suitable for filling powder and granular materials, such as pharmaceuticals powder, milk powder, protein powder, chicken powder, coffee powder, milk powder, solid drink, grape sugar, rice and so on.
