KLP--1181-6D2
220V 50-60Hz
USB wire , electric wire , cable , tube
| Quantity: | |
|---|---|

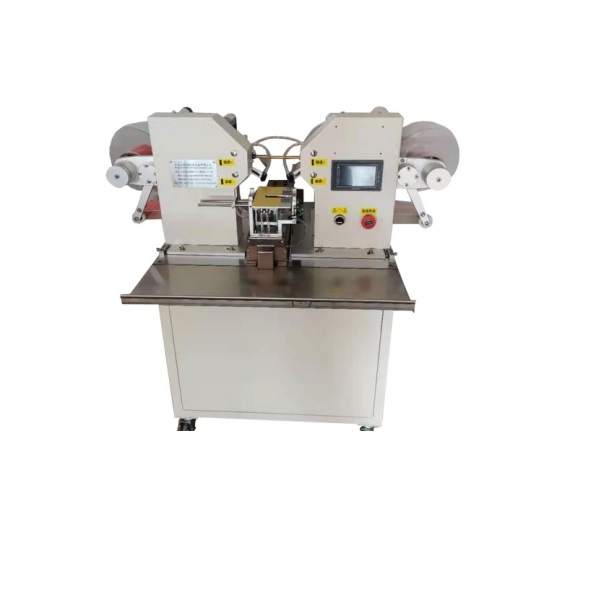

Two Labels Labeling machine Flag Labeling Machine For Wire and Cable
Technical parameters
| Model | KLP--1181-6D2 |
| power supply | 220V/50HZ |
| Labeling accuracy | ±0.2mm (excluding product and label errors) |
| Labeling speed | 1000-1800pcs/H ( depends on label size and manual operation speed)) |
| Applicable product | all kinds of round wire, flat wire, water pipe and other products |
| Applicable product size | wire diameter 1-30mm (others can be customized) |
| Applicable label size | length: 20mm ~ 160mm (others can be customized), width : 5mm~45mm |
| Machine size | about 655mm×1200mm×1000mm (length×width×height) |
| Label roll diameter | Label roll outer diameter: 240mm, label coupon inner diameter: 76mm |
| Machine weight | 86 kgs |
| Air pressure | 0.4-0.6Mpa |
This machine is an automatic equipment for pasting the label film on the bottom paper of the material tape on the cable. This machine has a wide range of applications, such as electronics industry, wire and cable industry, food and other industries. It is easy to replace and is suitable for labeling cables of various specifications. Improve production efficiency, reduce costs, and bring benefits to the majority of enterprises.
Features：
1.Precise positioning of servo motor;
2.SICK label electric eyes fast sensing label gap to complete labeling complete recognition;
3.Reasonable mechanical structure design ensures smooth and stable labeling; Humanized perfect structure design;
4.Easy to use, can be adjusted in a wide range, to achieve different specifications of wire harness products on the fold labeling;
5.Adjust the machine without twisting the screw, directly input the label size, line diameter size on the display screen;
6.Double label simultaneous attaching machine applies to one line needs to attach two labels at the same time, one machine saves more labor;
7.Improve production efficiency, solve the advantages of slow manual labeling, insufficient accuracy, personnel change and high labor cost;
8.CNC adjustment machine stable performance machine display manual convenient factory operators at any time to read.
Scope of application:
Applicable industries: electronics, wires, electrical appliances, electromechanical, used for earphone cables, USB cables, power cables, air pipes, water pipes, etc.;
Applicable labels: self-adhesive labels, self-adhesive films; electronic supervision codes, barcodes, etc.;
Application examples: earphone cable labeling, power cable labeling, optical fiber cable labeling, cable labeling, water pipe, air pipe labeling, warning label labeling machine, etc.
FAQ
Q1: What is your company's main products?
Chengdu KLP (Packaging) Machinery CO., Ltd. mainly offer Semi Automatic Filling Machine ,Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines etc.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
